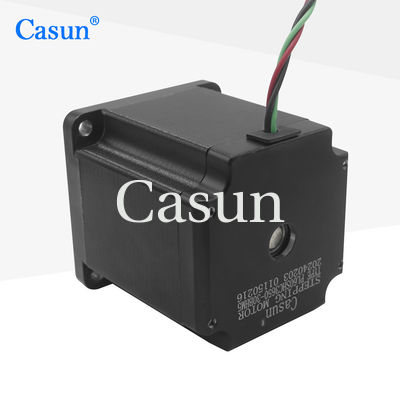

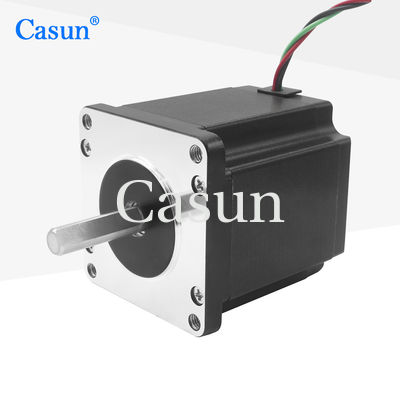

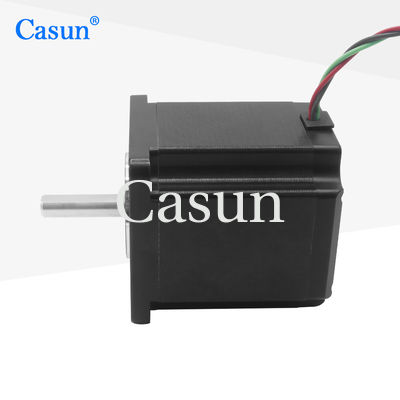

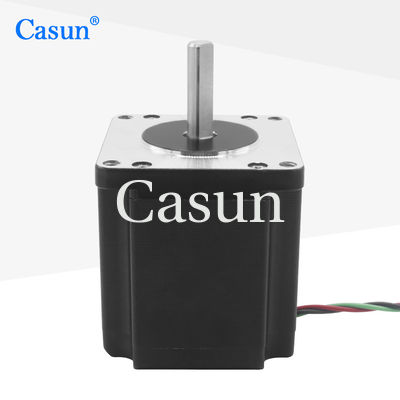

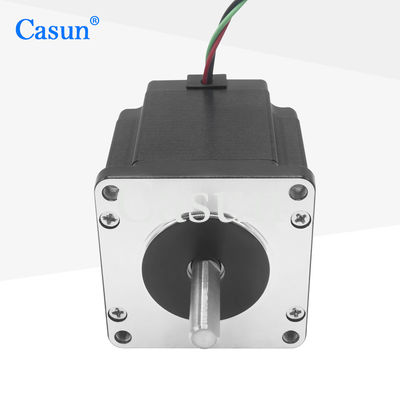

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment

Brand Name:	Casun
Model Number:	PL60SHC3650-30BHM5
MOQ:	1PC
Price:	$12.00-$16
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

1.5A

Holding Torque:

1.1N.m

Step Angle:

1.2°

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

1.1N.M Hybrid Stepper Motor

60x60x66mm Hybrid Stepper Motor

Automation Equipment Hybrid Stepper Motor

Product Description

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment

Stepper motor NEMA 24 4000mN.m 60x60x98 hybrid stepper motor for automation equipment

The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor commonly used in CNC machines, 3D printers, and robotics applications. It is designed to provide high torque and precise positioning, making it suitable for a wide range of applications.

One of the key features is its hybrid design, which combines the best features of both permanent magnet and variable reluctance stepper motors. This allows it to provide high torque and precise positioning while operating efficiently and reliably.

Key Features

Bipolar or unipolar versions available
Professional research and development manufacturing
Available in single or double shaft versions
Established in China for 12 years with over 800 customers served
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	60 mm
Number of Phase	2 Phase
Rated Current	1.5 Amp
Holding Torque	1.1 N.m
Resistance	2.3 Ω
Inductance	4.7 mH

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ω at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Customization Options

We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors to ensure the motor is a perfect fit for your application. This can lead to improved efficiency, increased reliability, and reduced downtime.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
