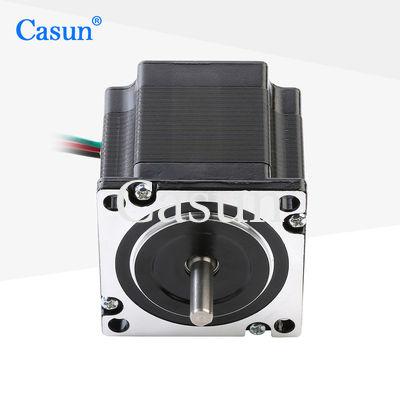

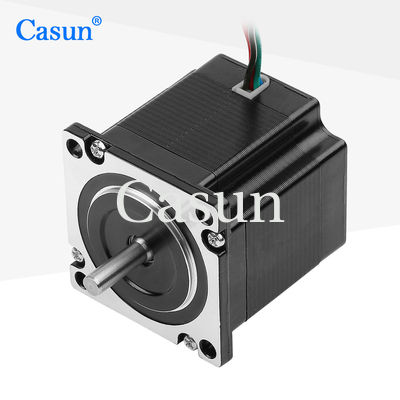

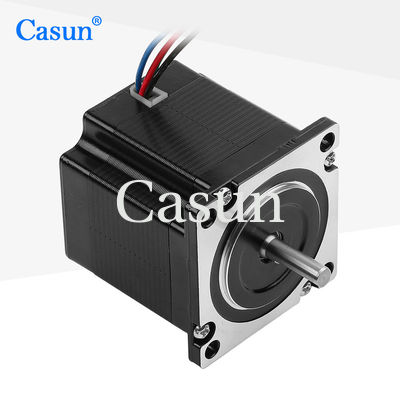

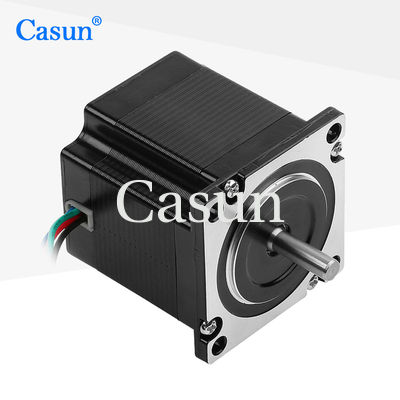

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

Brand Name:	Casun
Model Number:	23HS22-2804S1
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

1.2N.m

Current:

2.8A

Motor Length:

54mm

Shaft:

Round Shaft 21mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

2.5V Nema 23 Bipolar Stepper Motor

57x56mm Nema 23 Bipolar Stepper Motor

2.8A Nema 23 Bipolar Stepper Motor

Product Description

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

High torque and high precision
Our engineers will be in touch within 48 hours to provide the best solution
Multiple international certifications
We offer custom services and accept contract manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1.2 N.m
Resistance	0.9 ohm
Inductance	2.5 mH
Rotor Inertia	300 g-cm²
Motor Weight	0.7 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
