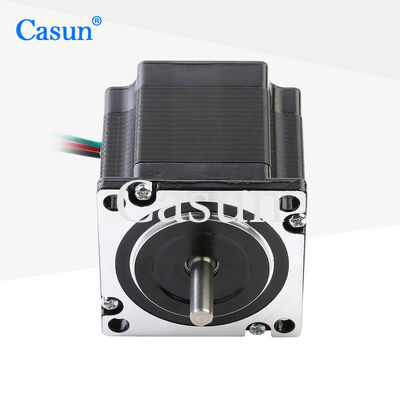

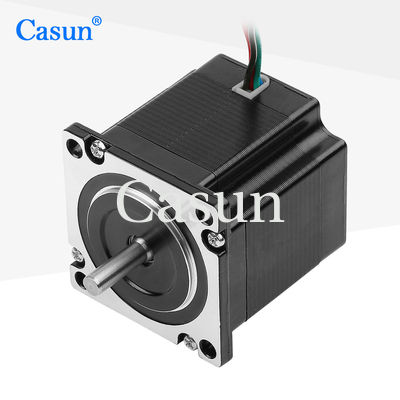

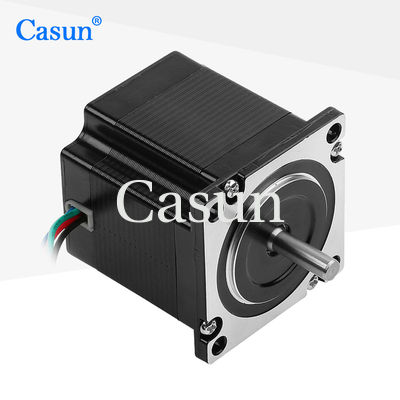

1.8 Degree 4 Phase 0.9N.m 1.0A DC NEMA 23 Hybrid Stepper Motor For CNC Robot

1.8 Degree 4 Phase 0.9N.m 1.0A DC NEMA 23 Hybrid Stepper Motor For CNC Robot

Brand Name:	Casun
Model Number:	57SHD6448-21BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

900mN.m

Current:

1.0A

Motor Length:

54mm

Shaft:

Milling Flat Shaft 21mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

1.0A NEMA 23 Hybrid Stepper Motor

0.9N.m NEMA 23 Hybrid Stepper Motor

Product Description

1.8 Degree 4 Phase 0.9N.m 1.0A DC NEMA 23 Hybrid Stepper Motor For CNC Robot

The low cost of NEMA 23 stepper motors makes them highly cost-effective in many application scenarios. Stepper motors can provide high torque at low speeds, making them ideal for applications that require high torque, such as robotic arms and 3D printers.

Key Features

High accuracy and torque
Offer "a variety of international accreditations" for equipment in the high-tech and electronics sectors
Boasting high torque and precision
Professional drivetrain solution specialist
Every stepper motor model is adaptable to a range of applications

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	4 Phase
Rated Current	1.0 A
Holding Torque	900 mN.m
Resistance	7.4 ohm
Inductance	10 mH
Rotor Inertia	260 g-cm²
Motor Weight	0.6 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
