57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments

name

57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments

Brand Name: Casun
Model Number: 23HS22-1006D
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
1.0A
Motor Length:
54mm
Shaft:
Dual Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.0A Dual Shaft Stepper Motor

,

Precision Instruments Dual Shaft Stepper Motor

,

0.9N.m Dual Shaft Stepper Motor

Product Description

Dual axis stepper motors typically have higher torque because the two axes can jointly provide greater torque.

The dual axis stepper motor can adapt to various application scenarios, such as automation equipment, precision instruments, robots, etc.



Features:

  • High accuracy and torque

  • Custom solutions and contract manufacturing are available

  • Our engineers will contact you within 48 hours to offer the most suitable solution

  • We are a professional research and development manufacturing company

  • Every stepper motor model is adaptable to a range of applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

1.0 A

Holding Torque

900 mN.m

Resistance

7.4 ohm

Inductance

10 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

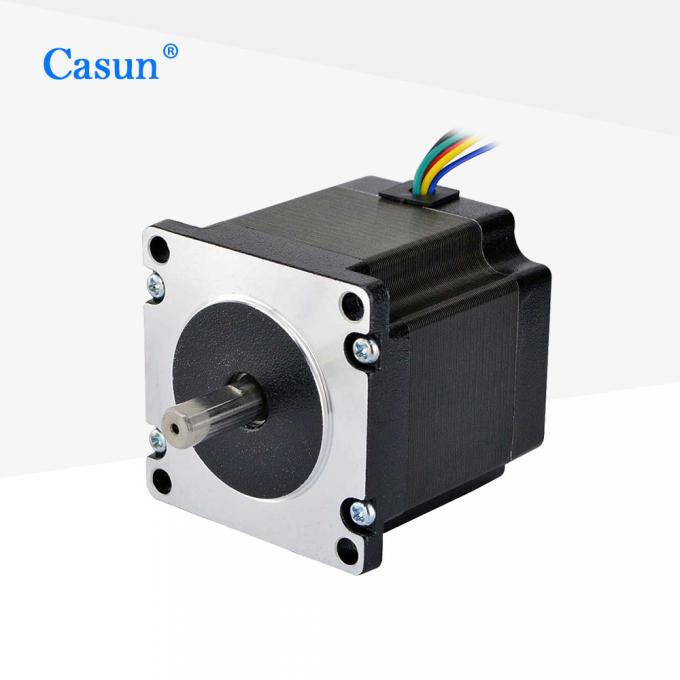

Appearance

57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 0

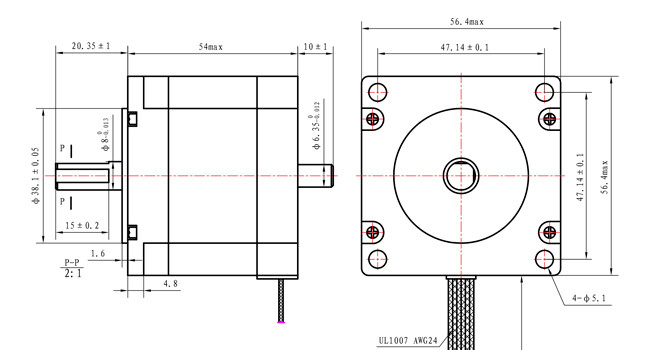

Dimensions

57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 2 57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 3 57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 4 57×57×54mm Dual Shaft Stepper Motor 1.0A 0.9N.m NEMA 23 With Precision Instruments 5



Please click the "Get a quote" button below to tell us your requirements.
