Nema 23 Hybrid Linear Stepper Motor Drive Module DC Power All-in-One for One Machine Integration

Brand Name:	Casun
Model Number:	57SHD4811-330NXH-PSM57
MOQ:	1PC
Price:	$38-45
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Packaging Details:

Carton:380x230x180mm

Highlight:

NEMA 23 Stepper Motor Drive Module

NEMA 23 Hybrid Stepper Motor

Hybrid Stepper Motor Drive Module

Product Description

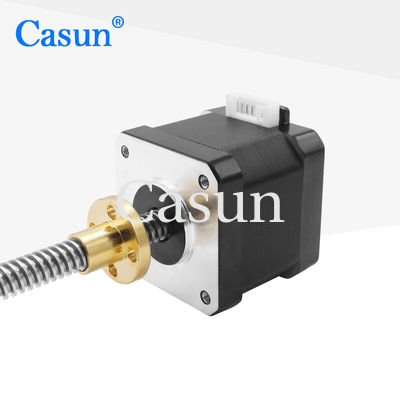

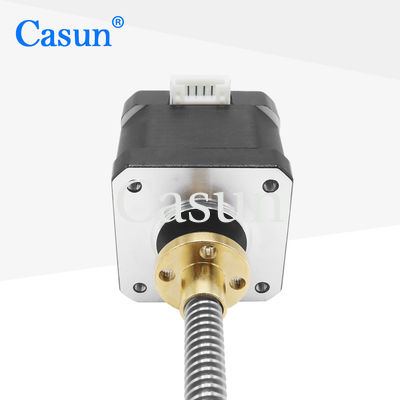

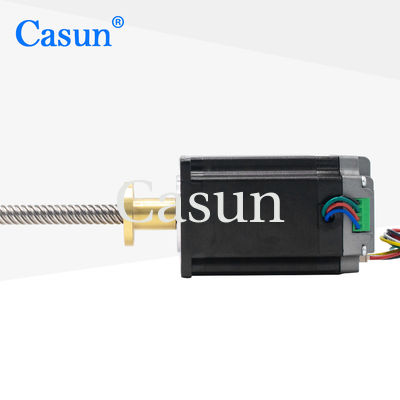

Nema 23 Hybrid Linear Stepper Motor Drive Module

All-in-one DC power solution for seamless machine integration. This 57×57mm Casun stepper motor features a 4-lead screw captive design with 4A rating and 2.0N.m torque, CE certified for industrial reliability.

Product Features

Built-in precision lead screw ensures high repeatability for CNC and automation applications

Supports bipolar (4-wire/8-wire) and unipolar (6-wire) winding configurations

Integrated DC power module with wide voltage input for compact system design

NEMA 23 base (57×57mm) provides superior rigidity with thrust exceeding 1N

Optional encoder for closed-loop control and enhanced high-speed stability

Compliant with CE safety standards and RoHS environmental directives

Customizable lead screw pitch and stroke length for specific requirements

Engineering support with 48-hour response for selection and optimization

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	4 A
Holding Torque	2000 mN.m
Resistance	0.6 ohm
Inductance	1.8 mH
Rotor Inertia	460 g-cm²
Motor Weight	1.4 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm, 54mm, 76mm, 83mm, 100mm	8	1	20 ~ 1000mm
	2	1.5875
	4	3.175
	8	25.4
	9.53	10
	10	2, 4, 10, 20
	12	4
	15	4, 8

Optional Accessories

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2011, we serve domestic markets (63%), Western Europe (12%), North America (9%), Eastern Asia (8%), and other global regions with a team of 51-100 professionals.

How can we guarantee quality?

We conduct pre-production sampling and final inspection before shipment to ensure consistent quality standards.

What can you buy from us?

We specialize in Stepper Motors and BLDC Motors.

Why should you buy from us?

With over 11 years of specialized experience in stepper motor production and sales, we offer proven expertise and reliability.

What services can we provide?

We accept FOB, CFR, CIF, EXW, and Express Delivery terms; payment in USD/CNY via T/T, L/C, D/P D/A, PayPal; with support in English, Chinese, and Japanese.
