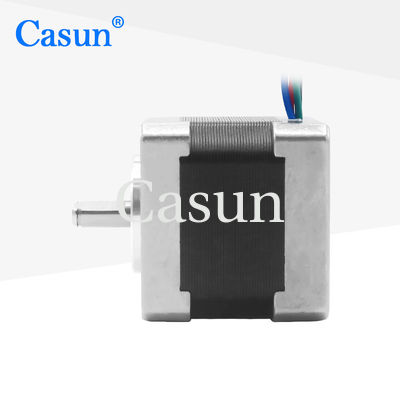

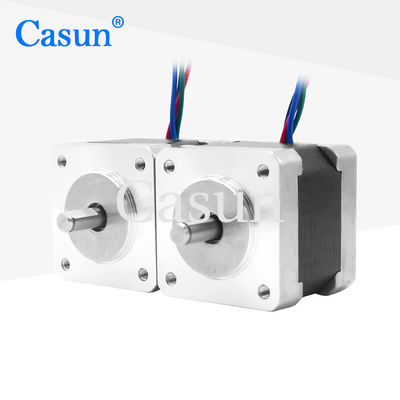

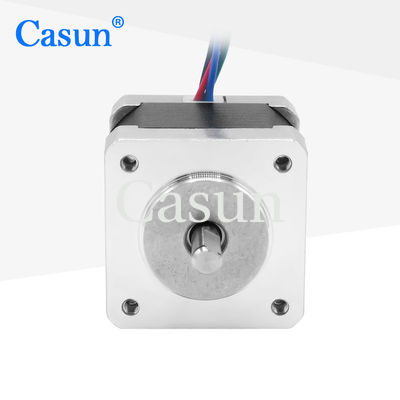

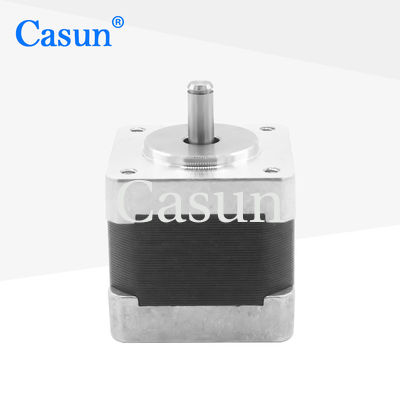

Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor For Medical Machine

Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor For Medical Machine

Brand Name:	Casun
Model Number:	P35SHD4119-13P
MOQ:	1PC
Price:	$3.5~$4.15
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

6.4ohms

Current:

0.75A

Voltage:

4.8V

Body Length:

34 Mm

Holding Torque:

230 MN.m

Weight:

0.2 Kg

Shaft Length:

13 Mm

Packaging Details:

Carton:38x29x18cm

Highlight:

230mN.m Nema 14 Stepper Motor

High Precision Nema 14 Stepper Motor

Medical Machine Nema 14 Stepper Motor

Product Description

Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor

The Casun Nema 14 High Precision Stepper Motor delivers 230 mN.m torque at 0.75A and is designed for medical machines requiring accurate motion control. Its hybrid stepper technology ensures smooth operation, high reliability, and precise positioning, making it ideal for sensitive medical applications. Compact, efficient, and built for performance.

Key Features

Bipolar or unipolar versions available

Hybrid stepper construction

Available in single or double shaft versions

CE and RoHS approved

Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	0.75 Amp
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g.cm²
Motor Weight	0.2 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
