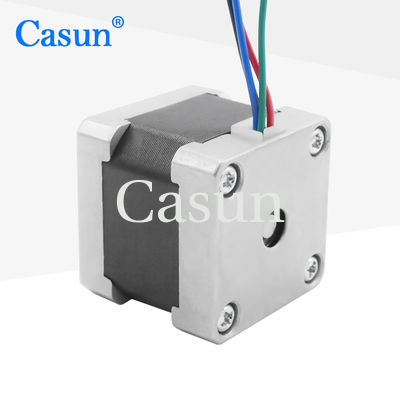

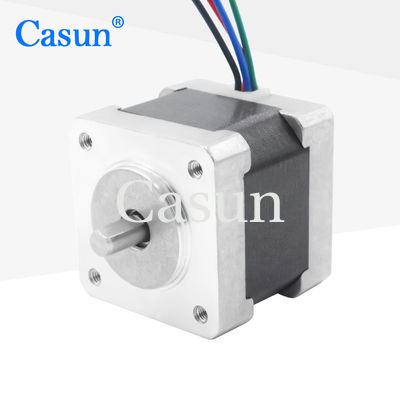

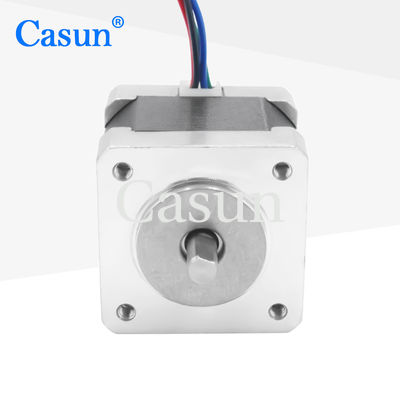

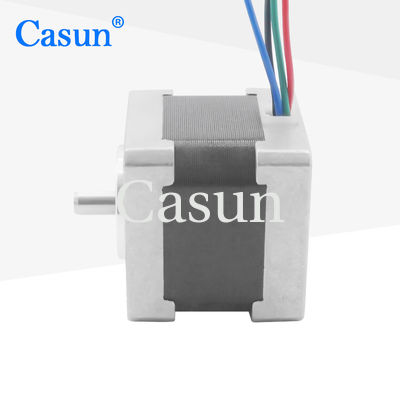

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor For Medical Machine

Brand Name:	Casun
Model Number:	35SHD4103-10B
MOQ:	1PC
Price:	$3.88~$4.6
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

3.8ohms

Current:

Voltage:

3.8V

Body Length:

34 Mm

Holding Torque:

155 MN.m

Weight:

0.2 Kg

Shaft Length:

10 Mm

Packaging Details:

Carton:38x29x18cm

Highlight:

155mN.m Nema 14 Stepper Motor

Stepper Motor for Medical Machine

High Precision Nema 14 Stepper Motor

Product Description

Casun Nema 14 High Precision 155mN.m Hybrid Stepper Motor

The Casun Nema 14 High Precision Stepper Motor delivers 155 mN.m torque at competitive factory prices, engineered specifically for medical machines requiring reliable and precise motion control. Featuring hybrid stepper technology, it ensures smooth operation, high accuracy, and durability in critical medical applications. Compact, cost-effective, and built for optimal performance.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	1 Amp
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g.cm²
Motor Weight	0.18 kg
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft
