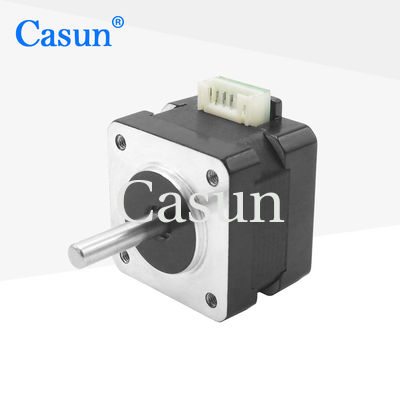

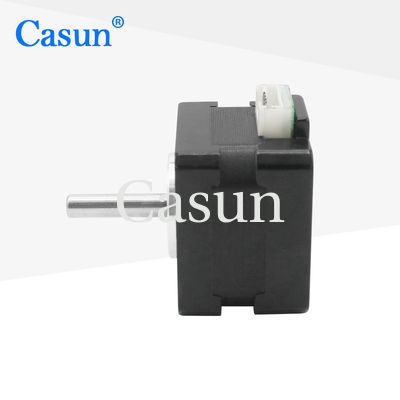

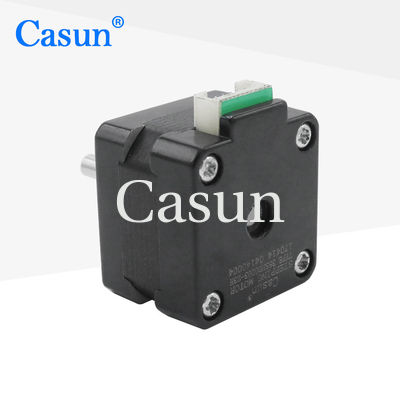

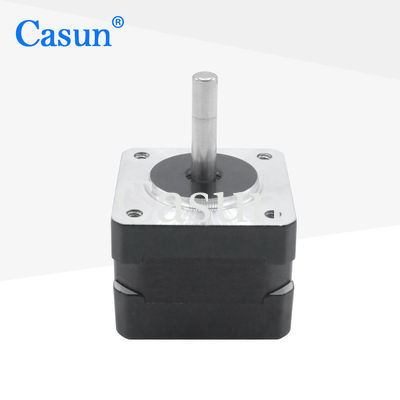

Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications

Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications

Brand Name:	Casun
Model Number:	35SHD0003-23H
MOQ:	1PC
Price:	$3.3~$3.8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

30ohms

Current:

0.4A

Voltage:

12V

Body Length:

26 Mm

Holding Torque:

110 MN.m

Weight:

0.15 Kg

Shaft Length:

23 Mm

Packaging Details:

Carton:38x29x18cm

Highlight:

Casun Nema 14 Stepper Motor

110 mN.m Torque Stepper Motor

Medical Stepper Motor

Product Description

Nema 14 Stepper Motor - Hybrid Technology High Precision

The Casun Nema 14 Stepper Motor combines hybrid technology with high precision, delivering 110 mN.m torque specifically designed for medical applications. Engineered for reliability and accuracy, it ensures smooth, consistent performance in critical medical equipment. Compact, efficient, and built for demanding environments.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

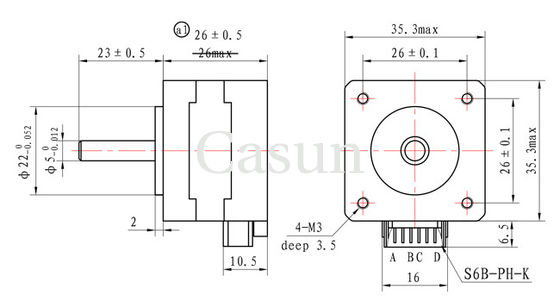

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	26 mm
Number of Phase	2 Phase
Rated Current	0.4 Amp
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g.cm²
Motor Weight	0.15 kg
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Custom Motor Solutions

If our standard motors cannot meet your requirements, we can customize motors according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft
