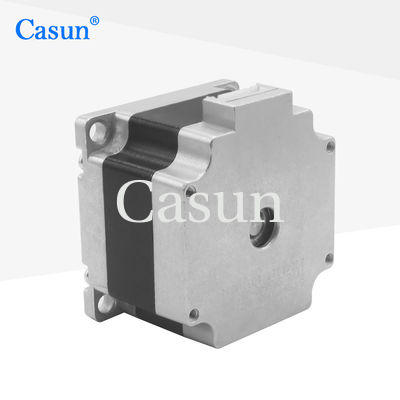

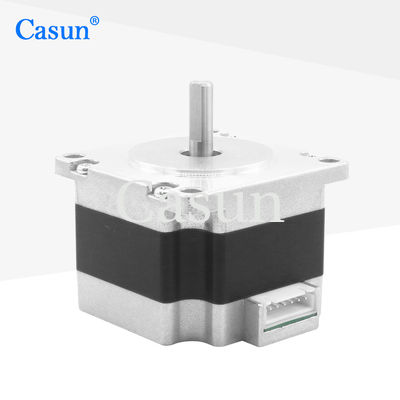

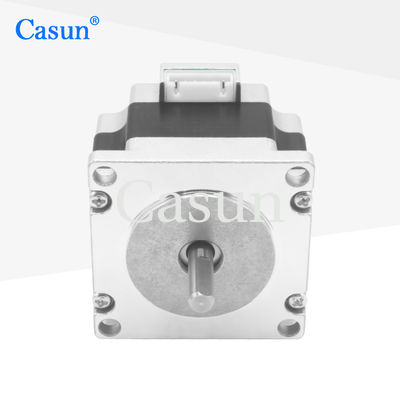

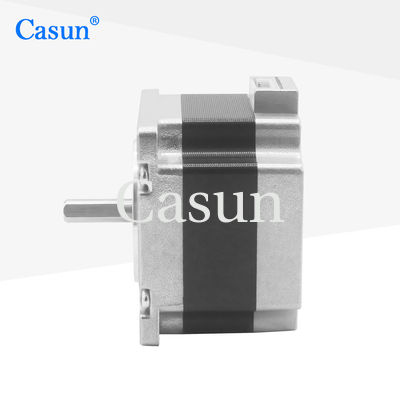

Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC

name

Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC

Brand Name: Casun
Model Number: 57SHD0048B-20B
MOQ: 5PC
Price: $6.02~$7.38
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
780 MN.m
Voltage:
3.4V
Current:
2.4A
Body Length:
41mm
Weight:
0.45 Kg
Phase Resistance:
1.2 Ohm ±10% （At 20℃）
Shaft Length:
20 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema 23 Hybrid Stepper Motor

,

3.4V Nema 23 Stepper Motor

,

780mN.m Nema 23 Stepper Motor

Product Description
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC
A high-torque Nema 23 stepper motor delivering 780mN.m holding torque at 3.4V for robust performance in demanding CNC, milling, and industrial automation applications. Built for durability and precision, this motor ensures smooth operation and reliable positioning.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 0
Motor Specifications
Step Angle 1.8°
Frame Size 41 mm
Number of Phase 2 Phase
Rated Current 2.4 Amp
Holding Torque 780 mN.m
Resistance 1.2 ohm
Inductance 3.1 mH
Rotor Inertia 170 g.cm²
Motor Weight 0.45 kg
Connection Bipolar
Operating Specifications
Motor
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder
Voltage 5V
Output A + A - B + B - Z + Z -
Submodels
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 1
Custom Motor Solutions
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 2
Encoder
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 3
Brake
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 4
Gearbox
Casun Nema 23 780mN.m 3.4V High Tough Hybrid Stepper Motor for CNC 5
Shaft
Please click the "Get a quote" button below to tell us your requirements.
