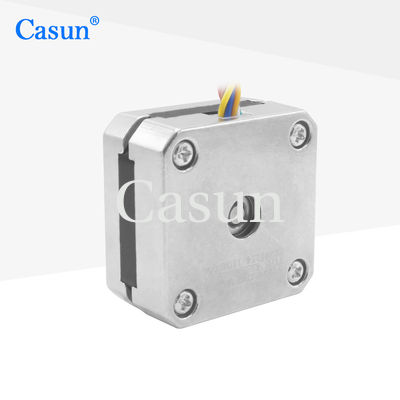

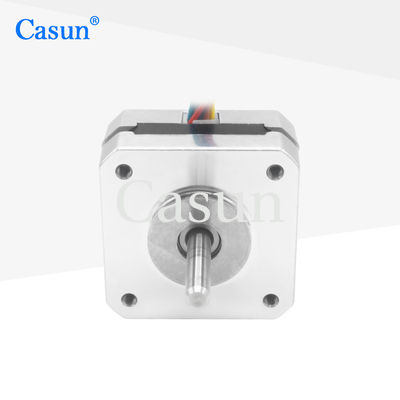

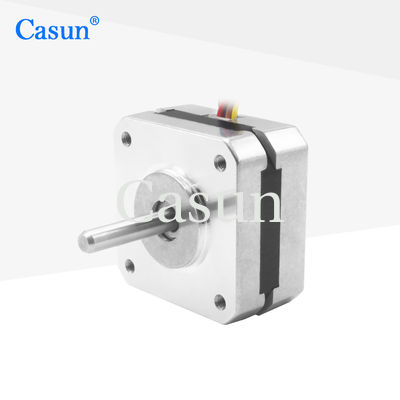

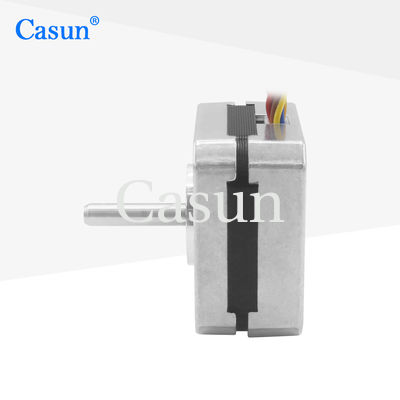

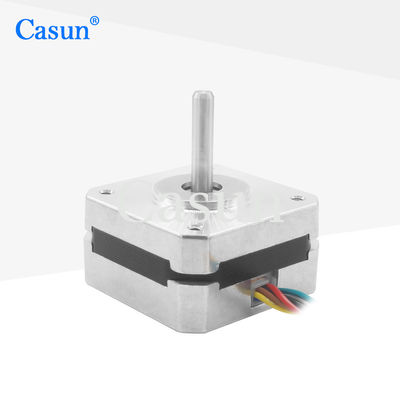

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment

name

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment

Brand Name: Casun
Model Number: 42SHD8909-24
MOQ: 5PC
Price: $5~$7
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
125 MN.m
Voltage:
2.26V
Current:
1.2A
Body Length:
23mm
Weight:
0.2 Kg
Phase Resistance:
1.88 Ohm ±10% （At 20℃）
Shaft Length:
24 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment

The Casun Nema17 Hybrid Stepper Motor delivers industrial-grade precision and high-torque performance (500mN.m) for demanding CNC and automation applications. Featuring a compact 42×48mm frame, this motor integrates advanced hybrid technology for smooth, reliable motion control while maintaining exceptional energy efficiency.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 23 mm

Number of Phase



 2 Phase

Rated Current



 1.2 Amp

Holding Torque



 125 mN.m

Resistance



 1.88 ohm

Inductance



 1.9 mH

Rotor Inertia



 15 g.cm²

Motor weight



 0.2 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 2 Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 3 Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 4 Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment 5





Please click the "Get a quote" button below to tell us your requirements.
