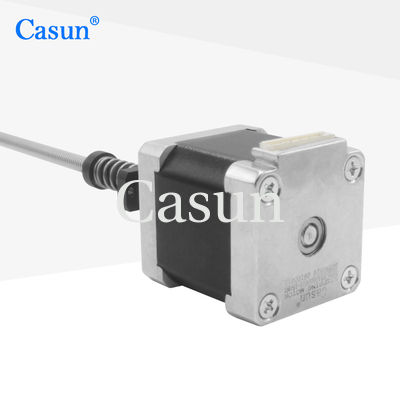

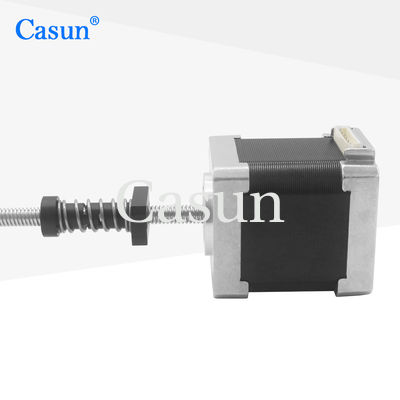

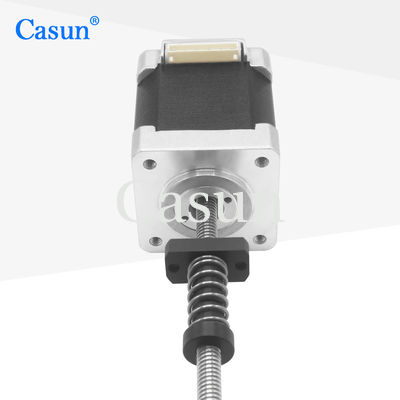

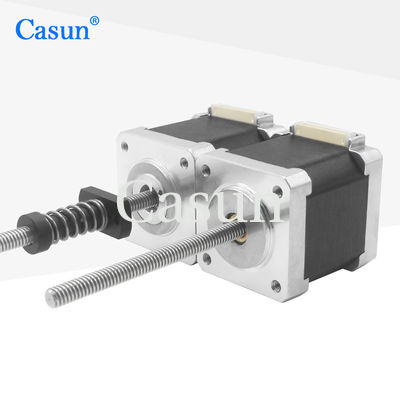

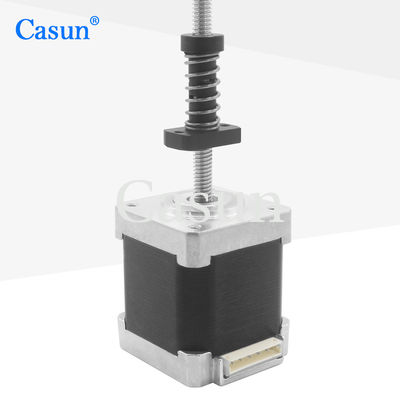

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

Brand Name:	Casun
Model Number:	P35SHD0817-150NT
MOQ:	5PC
Price:	$16.28~$18.47
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

360 MN.m

Voltage:

4.8V

Current:

1.5A

Body Length:

42mm

Weight:

0.24 Kg

Phase Resistance:

3.2 Ohm ±10% （At 20℃）

Shaft Length:

150 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

Tr5X2 NEMA 14 Stepper Motor

P1 NEMA 14 Stepper Motor

Hybrid Stepper Motor with Threaded Shaft

Product Description

Nema 14 Stepper Motor TR5X2 P1 - 360mN.m High Precision Hybrid Stepper Motor

The Casun Nema 14 Hybrid Stepper Motor combines high torque (360 mN.m) and exceptional precision in a compact package, making it ideal for automation, medical devices, and small CNC systems. Its unique TR5×2 (P1) threaded shaft enables direct lead screw integration, eliminating the need for additional couplings and improving system rigidity.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 Amp
Holding Torque	360 mN.m
Resistance	3.2 ohm
Inductance	4.5 mH
Rotor Inertia	57 g.cm²
Motor Weight	0.24 kg
Connection	Bipolar

Operating Specifications

Motor Operating Conditions

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Ready to discuss your specific requirements?

Please click the "Get a quote" button below to tell us your requirements.
