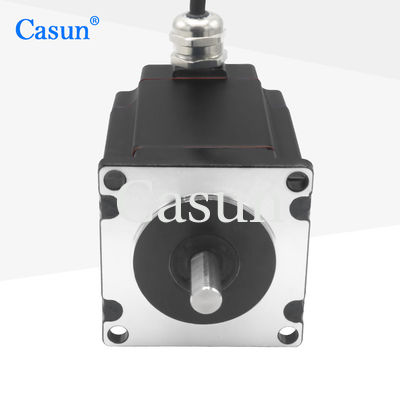

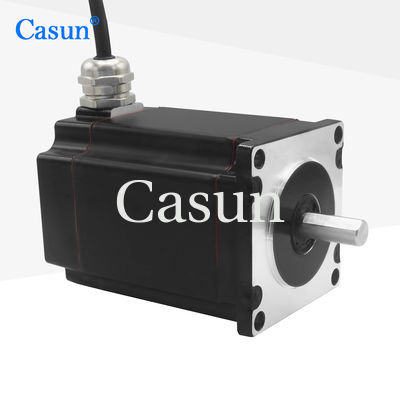

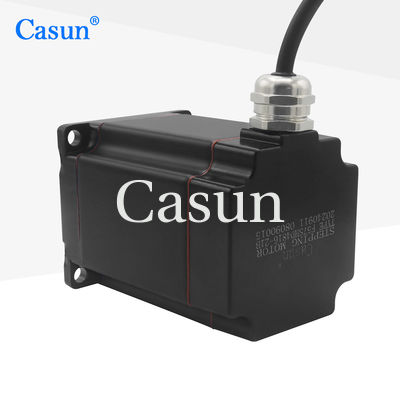

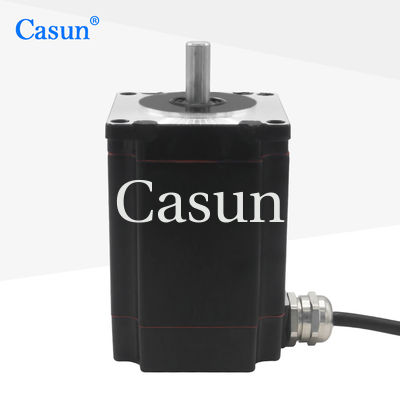

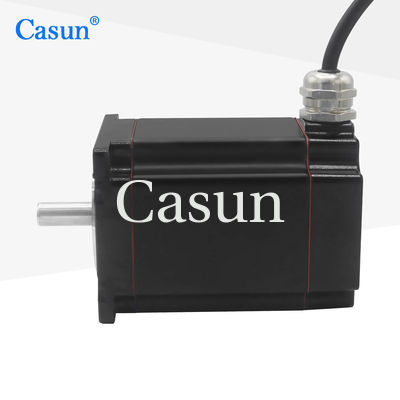

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC

name

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC

Brand Name: Casun
Model Number: F57SHD4816-21B
MOQ: 5PC
Price: $8.1~$9.38
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
2000 MN.m
Voltage:
2.85V
Current:
3A
Body Length:
76mm
Weight:
1 Kg
Phase Resistance:
0.95 Ohm ±10% （At 20℃）
Shaft Length:
20 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC

Designed for demanding industrial applications, the Casun Nema 23 Hybrid Stepper Motor delivers exceptional 2N.m torque in a compact 76mm body, making it ideal for CNC machines, automated equipment, and high-precision motion systems. With CE & RoHS certification, this motor ensures both performance and compliance for global markets.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 76 mm

Number of Phase



 2 Phase

Rated Current



 3 Amp

Holding Torque



 2000 mN.m

Resistance



 0.95 ohm

Inductance



 3.6 mH

Rotor Inertia



 460 g.cm²

Motor weight



 1 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 2 Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 3 Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 4 Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC 5





Please click the "Get a quote" button below to tell us your requirements.
