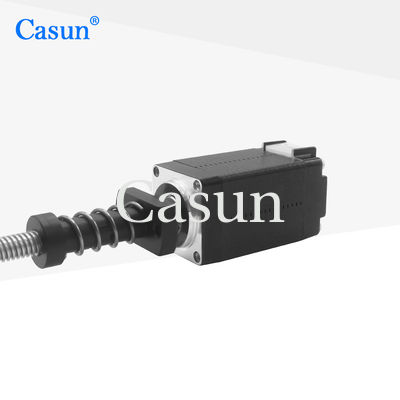

Nema 8 Lead Screw Stepper Motor With Customizable Shaft Length 32mN.m High Precision For Medical Devices

Nema 8 Lead Screw Stepper Motor With Customizable Shaft Length 32mN.m High Precision For Medical Devices

Brand Name:	Casun
Model Number:	20SHD0250-150NT
MOQ:	5PC
Price:	$18.45~$19.23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

32 MN.m

Voltage:

5.4V

Current:

0.6A

Body Length:

38mm

Weight:

0.08 Kg

Phase Resistance:

9 Ohm ±10% （At 20℃）

Shaft Length:

150 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

High Precision Lead Screw Stepper Motor

Nema 8 Lead Screw Stepper Motor

Customizable shaft Lead Screw Stepper Motor

Product Description

Nema 8 Lead Screw Stepper Motor

High precision 32 mN.m stepper motor with customizable shaft length, specifically designed for medical devices, lab automation, and miniature robotics applications.

Product Overview

The Casun Nema 8 Lead Screw Stepper Motor is a best-selling compact solution that integrates a lead screw for direct linear motion. This design eliminates the need for additional couplings, ensuring backlash-free performance and simplified integration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	38 mm
Number of Phase	2 Phase
Rated Current	0.6 Amp
Holding Torque	32 mN.m
Resistance	9 ohm
Inductance	3 mH
Rotor Inertia	3.8 g.cm²
Motor Weight	0.08 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your specific requirements and receive a customized solution.

Get a Quote
