products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Ball Screw Stepper Motor
Created with Pixso.

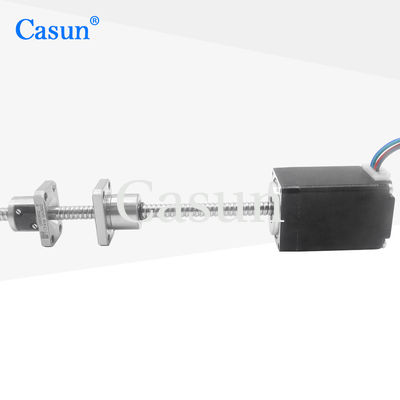

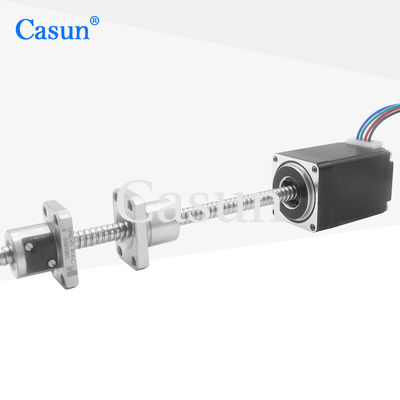

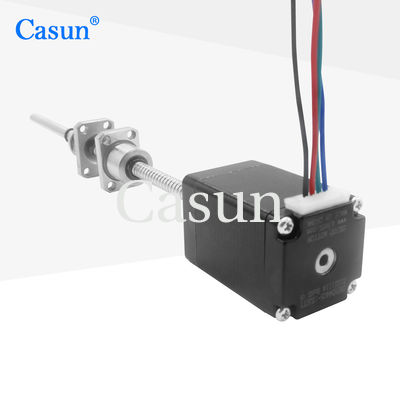

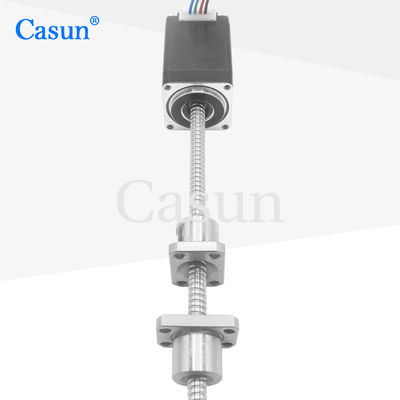

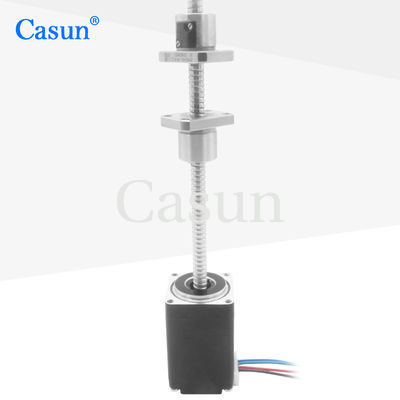

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

name

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Brand Name: Casun
Model Number: 28SHD4405-182GT1
MOQ: 5PC
Price: $18.21~$19.87
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
100 MN.m
Voltage:
3.78V
Current:
1.4A
Body Length:
45mm
Weight:
0.18 Kg
Phase Resistance:
2.7 Ohm ±10% （At 20℃）
Shaft Length:
182 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Motor Ball Screw Stepper Motor 100 mN.m 3.78V High Precision Stepper Motor for CNC Machine

The Casun Ball Screw Stepper Motor combines a high-precision stepper motor with an integrated ball screw mechanism, delivering exceptional linear motion control for CNC machines and automation systems. With 100 mN.m torque and 3.78 V low-voltage operation, this motor is engineered for smooth, backlash-free movement in demanding industrial environments.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions



                      Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 0

Motor Specifications



Step Angel



 1.8°

Frame Size



 45 mm

Number of Phase



 2 Phase

Rated Current



 1.4 Amp

Holding Torque



 100 mN.m

Resistance



 2.7 ohm

Inductance



 1.9 mH

Rotor Inertia



 9 g.cm²

Motor weight



 0.18 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 2 Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 3 Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 4 Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine 5





Please click the "Get a quote" button below to tell us your requirements.
