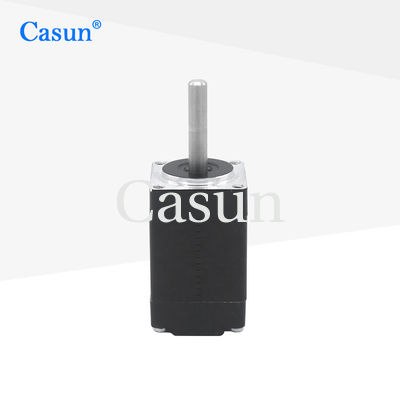

Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment

Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment

Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment

Brand Name: Casun
Model Number: 20SHD0001-20
MOQ: 1PC
Price: $10-$4
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
15mN.m
Current:
0.6A
Motor Length:
20MM
Shaft:
20MM
Phase:
2
Rated Voltage:
3.9V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:210x190x170
Highlight:

NEMA 8 hybrid stepper motor

,

mini stepper motor high torque

,

stepper motor for medical equipment

Product Description
Nema 8 Mini Hybrid Stepper Motor
20×30mm Casun 0.6A Nema 8 Stepper Motor with CE certification. This compact 20×20×30mm NEMA 8 hybrid mini stepper motor delivers 0.6A current and 15mN.m torque, ideal for medical beauty equipment and precision applications.
Key Features
  • Standard 20×20mm chassis size (NEMA 8) for space-constrained precision equipment
  • Ideal for portable and small automation devices
  • Low inertia rotor for fast start/stop and sensitive response
  • Single-axis or dual-axis output with easy installation of couplings or encoders
  • Available in 4-wire (bipolar) or 6-wire (unipolar) versions for drive compatibility
  • RoHS/CE compliance meeting environmental and safety standards
  • Engineering support available within 48 hours for optimal solutions
Motor Dimensions
Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 0 Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 1
Motor Specifications
Step Angle 1.8°
Frame Size 20 mm
Number of Phase 2 Phase
Rated Current 0.6 A
Holding Torque 15 mN.m
Resistance 6.5 ohm
Inductance 1.7 mH
Rotor Inertia 2 g-cm²
Motor Weight 0.06 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Maximum Temperature: 80°C
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 minute
Available Models
Model Holding Torque Rated Current Rotor Inertia Motor Length
20SHD0001-20 18mN.m 0.6A 2 g.cm² 20mm
20SHD0101-20 30mN.m 0.8A 3/5 g.cm² 20mm
Customization Options
If our standard motor cannot meet your requirements, we can customize motors according to your specific needs. Customization includes special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Encoder
Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 2
Brake
Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 3
Gearbox
Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 4
Shaft
Nema 8 mini hybrid stepper motor 2 phase 0.6A 3.9V motor 15mN.m high torque for Medical Beauty Equipment 5
Get a Quote
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2011, we serve Domestic Market (63%), Western Europe (12%), North America (9%), Eastern Asia (8%), and Northern Europe (2%). Our team consists of 51-100 professionals.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.
What can you buy from us?
We specialize in Stepper Motors and BLDC Motors.
Why should you buy from us?
With over 11 years of specialized experience in stepper motor production and sales, we offer expert solutions and reliable products.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment: USD, CNY via T/T, L/C, D/P D/A, PayPal. Languages: English, Chinese, Japanese.
