products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Brand Name: Casun
Model Number: 57SHD4934-20B
MOQ: 1pcs
Price: $50-$100
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 40000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Phase:
2
Type:
Hybrid
Holding Torque:
3Nm
Current / Phase:
3A
Step Angle(degrees):
1.8
Shaft:
20mm
Body:
100mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 23 hybrid stepper motor 4N.m high torque

,

57x57x69mm stepper motor for CNC machines

,

4 axis stepper motor for engraving

Product Description

Nema 23 Hybrid Stepper Motor, 57*57*100mm.1.8 Degree 2 Phase, 3N.m Holding Torque.

Top Manufacturer Supplier 57*100mm 1.8 Degree Nema 23 Stepper Motors 3N.M For Cnc Kit Electric Motor

The 57mm Hybrid stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

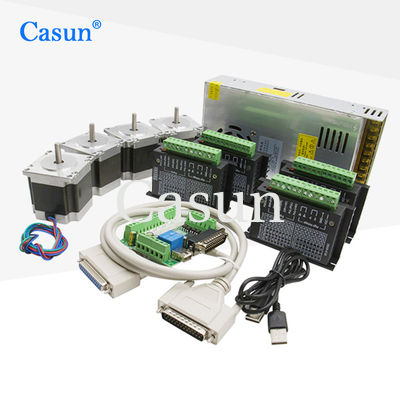

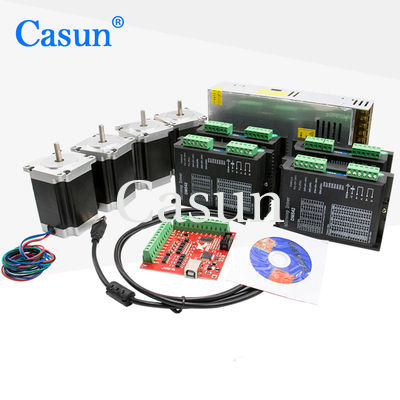

The package includes: 4 motors+4 drivers+4 power supplies+ 1 controller



Features:

  • Bipolar or unipolar versions are available

  • We offer custom services and accept contract manufacturing. Wanted dealers! !

  • Available in single- or double-shaft versions

  • Professional drivetrain solution specialist

  • Customizations on request

Dimensions

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 0







Motor Specifications



Step Angel



 1.8 °

Fram Size



 57 mm

Number of Phase



 2 Phase

Rated Current



 3.0 A

Holding Torque



 3 N.m

Resistance



 2.8 ohm

Inductance



 11 mH

Rotor Inertia



 650 g-cm²

Motor weight



 2 kg

Shatf





 20 mm

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 1 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 2 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 3 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 4





Please click the "Get a quote" button below to tell us your requirements.
