Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Brand Name: Casun
Model Number: 60SHD4704-21B
MOQ: 1pcs
Price: $100-$200
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 40000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Phase:
2
Type:
Hybrid
Holding Torque:
4Nm
Current / Phase:
4A
Step Angle(degrees):
1.8
Shaft:
20mm
Body:
100mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 23 hybrid stepper motor 4N.m high torque

,

60x60x100mm stepper motor for CNC machines

,

4 axis stepper motor for engraving

Product Description
Casun 2 Phase Nema 23 Hybrid Stepper Motor
High-torque 60x60x100mm stepper motor with 4N.m holding torque and 4.0A rated current. Designed for CNC and engraving machine applications requiring precise positioning control.
Package Includes

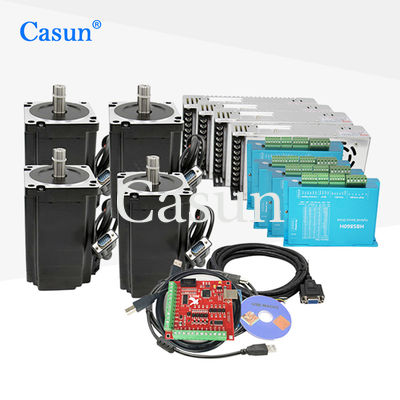

4 motors + 4 drivers + 4 power supplies + 1 controller
Key Features
  • Bipolar or unipolar versions available
  • Custom services and contract manufacturing
  • Single- or double-shaft versions
  • Professional drivetrain solution specialist
  • Customizations available on request
Motor Dimensions
Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 0
Motor Specifications
Step Angle1.8°
Frame Size60 mm
Number of Phase2 Phase
Rated Current4.0 A
Holding Torque4 N.m
Resistance0.93 ohm
Inductance3.5 mH
Rotor Inertia1000 g-cm²
Motor Weight2 kg
Shaft20 mm
ConnectionBipolar
Operating Specifications
Motor Operating Conditions
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize motors according to your specific needs. Customization options include special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and more.
Available Options

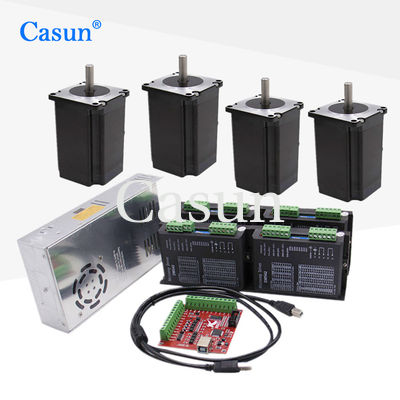

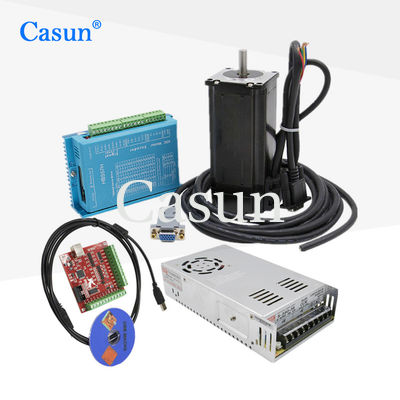

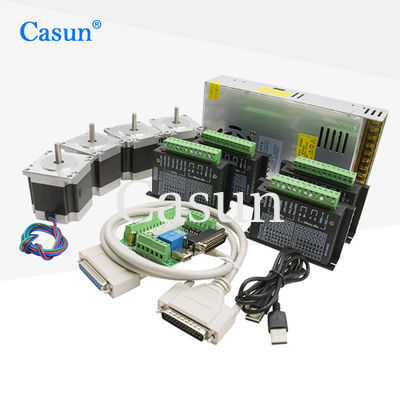

Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 1 Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 2 Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 3 Casun 2 Phase Nema 23 hybrid stepper motor 60x60x100mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 4
