Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine

Brand Name: Casun
Model Number: 57SHDH4608-27BH
MOQ: 1pcs
Price: $50-$120
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 40000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Phase:
2
Type:
Hybrid
Holding Torque:
1.2Nm
Current / Phase:
2.8A
Step Angle(degrees):
1.8
Shaft:
27mm
Body:
56mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 23 stepper motor high torque

,

hybrid stepper motor for CNC

,

57mm stepper motor for engraving

Product Description
Casun 2 Phase Nema 23 Hybrid Stepper Motor
57x57x56mm high torque stepper motor with 1.2N.m holding torque and 2.8A rated current, ideal for CNC machines and engraving equipment.
Product Overview
Nema 23 Hybrid Stepper Motor, 57×57×56mm, 1.8° step angle, 2-phase design with 1.2N.m holding torque. Engineered for precise positioning control in high-precision applications.
Package Contents
Complete set includes: 4 motors + 4 drivers + 4 power supplies + 1 controller
Key Features
  • Available in bipolar or unipolar versions
  • Custom services and contract manufacturing available
  • Single- or double-shaft versions offered
  • Professional drivetrain solution specialist
  • Customizations available upon request
Motor Dimensions
Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine 0
Motor Specifications
ParameterSpecification
Step Angle1.8°
Frame Size60 mm
Number of Phase2 Phase
Rated Current2.8 A
Holding Torque1.2 N.m
Resistance0.9 ohm
Inductance2.5 mH
Rotor Inertia280 g-cm²
Motor Weight0.62 kg
Shaft27 mm
ConnectionBipolar
Operating Specifications
Motor Operating Conditions:
  • Maximum Temperature: 80°C maximum
  • Ambient Temperature: -20°C to 50°C
  • Storage Temperature: -20°C to 100°C
  • Humidity Range: 85% or less, non-condensing
  • Magnet Wire Insulation: Class B 130°C
  • Insulation Resistance: 100M Ohm at 500 VDC
  • Dielectric Strength: 500 VDC for 1 minute
Customization Services
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.
Customized content includes but is not limited to:
  • Special shafts
  • Winding parameters
  • Installation dimensions
  • Lead wires with special requirements
  • Connectors
Available Options

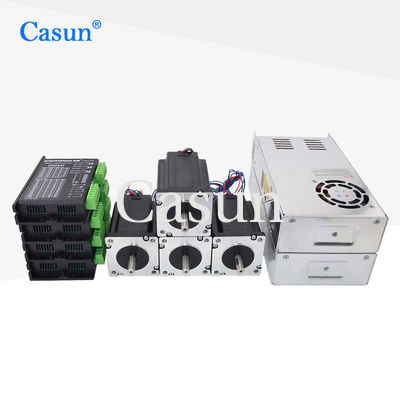

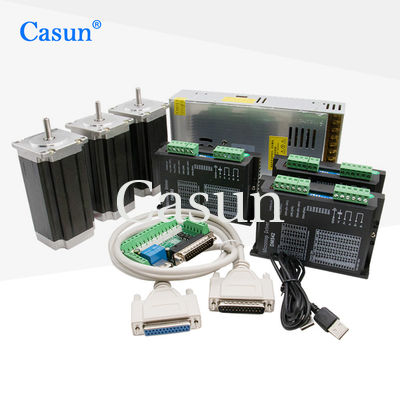

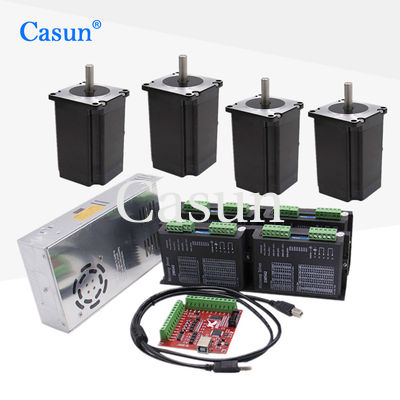

Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine 1 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine 2 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine 3 Casun 2 Phase Nema 23 hybrid stepper motor 57x57x56mm 1.2N.m high torque 2.8A with 4 axis / 3axis for CNC for Engraving machine 4
Get a Quote
Please click the button above to tell us your specific requirements.
