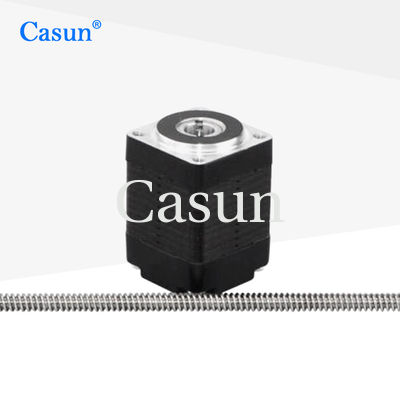

Nema 8 non-captive stepper motor 20x20x38mm 32mN.m holding torque 0.6A DC power for cnc for XYZ three-dimensional workbench

Nema 8 non-captive stepper motor 20x20x38mm 32mN.m holding torque 0.6A DC power for cnc for XYZ three-dimensional workbench

Brand Name:	Casun
Model Number:	20SHD0250-100TT
MOQ:	1pcs
Price:	$9.94-$12.8
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Current:

0.6Amp

Holding Torque:

32mN.m

Steper Angle:

1.8degree

Phase:

Rated Voltage:

5.4V

Detent Torque:

3mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nema 8 stepper motor 20x20x38mm

Non-captive stepper motor 32mN.m torque

Stepper motor for CNC XYZ workbench

Product Description

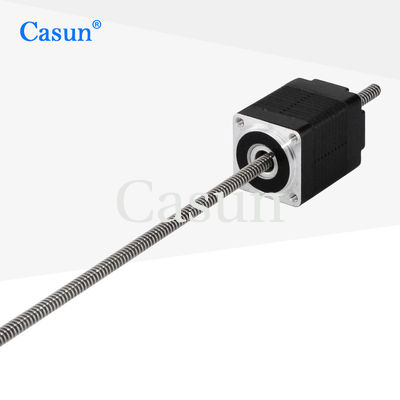

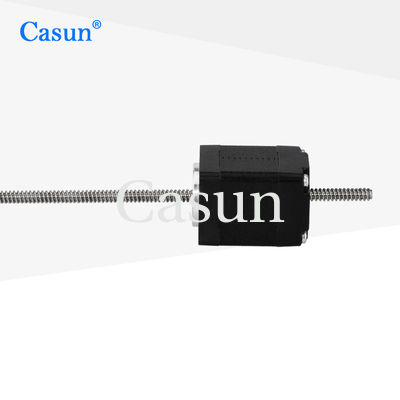

Casun 0.6A non-captive motor 5.4V Nema 8 Non Captive Stepper Motor with Lead Screw Tr5X2 Bipolar black

NEMA 8 through lead screw stepper motor with lead screw holding torque 32mN.m 0.08kg tr5*2 for 3D

The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	20mm
Number of Phase	2 Phase
Rated Current	0.6Amp
Holding Torque	32 mN.m
Resistance	9.0 ohm
Inductance	3.2mH
Rotor Inertia	3.5 g-cm²
Motor weight	0.08kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
20SHD0304	18mN.m	1.8°	28mm	Round Shaft-20mm	0.6A
20SHD0250	32mN.m	1.8°	38mm	Round Shaft-20mm	0.6A
20SHD0101	30mN.m	1.8°	42mm	Round Shaft-20mm	0.8A

Body Length	Diameter of Screw	Pitch	Length of Screw
27 mm 30 mm 38 mm 42 mm 47 mm	3.5	0.6096	20-1000 mm
		1.2192
		2.44
		4

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 8 non-captive stepper motor 20x20x38mm 32mN.m holding torque 0.6A DC power for cnc for XYZ three-dimensional workbench 1

Please click the "Get a quote" button below to tell us your requirements.
