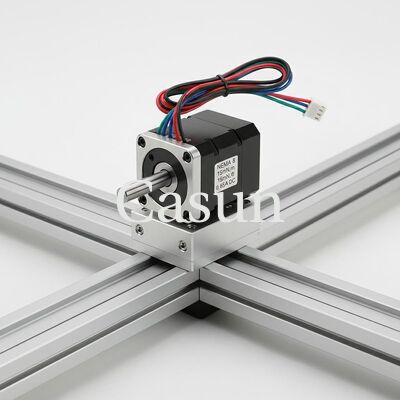

Nema 8 non-captive stepper motor 20x20x27mm 15mN.m holding torque 0.65 DC power for cnc for XYZ three-dimensional workbench

Nema 8 non-captive stepper motor 20x20x27mm 15mN.m holding torque 0.65 DC power for cnc for XYZ three-dimensional workbench

Brand Name:	Casun
Model Number:	20SHD0250-100TT
MOQ:	1pcs
Price:	$9.94-$12.8
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Current:

0.6Amp

Holding Torque:

32mN.m

Steper Angle:

1.8degree

Phase:

Rated Voltage:

5.4V

Detent Torque:

3mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nema 8 non-captive stepper motor 20x20x27mm

15mN.m holding torque stepper motor

CNC XYZ workbench stepper motor

Product Description

Nema 8 Non-Captive Stepper Motor

Casun 0.6A non-captive motor 5.4V Nema 8 Non Captive Stepper Motor with Lead Screw TR5X2 Bipolar black. This 20mm Hybrid Stepper Motor Series offers powerful holding torque in a compact size, ideal for CNC applications and XYZ three-dimensional workbenches.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	20mm
Number of Phase	2 Phase
Rated Current	0.6A
Holding Torque	32 mN.m
Resistance	9.0 ohm
Inductance	3.2 mH
Rotor Inertia	3.5 g-cm²
Motor Weight	0.08 kg
Lead Screw	TR5X2
Connection	Bipolar

Operating Specifications

Parameter	Value
Maximum Temperature	80°C
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Shaft Type	Rated Current
20SHD0304	18 mN.m	1.8°	28mm	Round Shaft-20mm	0.6A
20SHD0250	32 mN.m	1.8°	38mm	Round Shaft-20mm	0.6A
20SHD0101	30 mN.m	1.8°	42mm	Round Shaft-20mm	0.8A

Lead Screw Options

Body Length	Screw Diameter	Pitch	Screw Length
20mm, 34mm, 40mm, 48mm, 60mm	5mm, 8mm, 6.35mm	1.27mm, 2mm, 3mm, 4mm, 6.35mm, 8mm, 12mm	20-1000mm

Customization Services

If our standard motors cannot meet your requirements, we can customize motors according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options:

Encoder
Brake
Gearbox
Shaft

Please click the "Get a quote" button below to tell us your requirements.
