32 Subdivision 4A 42V Pulse 2 Phase Stepper Motor Driver For 3D Printer

32 Subdivision 4A 42V Pulse 2 Phase Stepper Motor Driver For 3D Printer

  • High Light

    4A 2 Phase Stepper Motor Driver

    ,

    42V 2 Phase Stepper Motor Driver

    ,

    3D Printer Stepper Motor Driver

  • Place of Origin
    China
  • Brand Name
    Casun
  • Model Number
    TB6600
  • Minimum Order Quantity
    1pc
  • Price
    $3-$6
  • Packaging Details
    38X29X18cm
  • Delivery Time
    5 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    5000pcs+Month

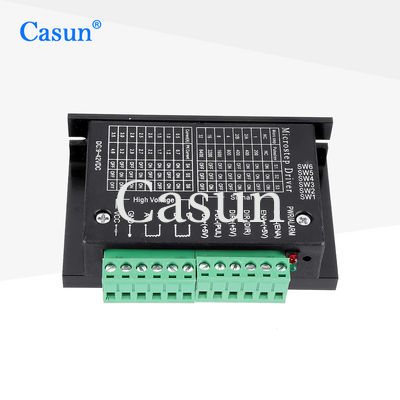

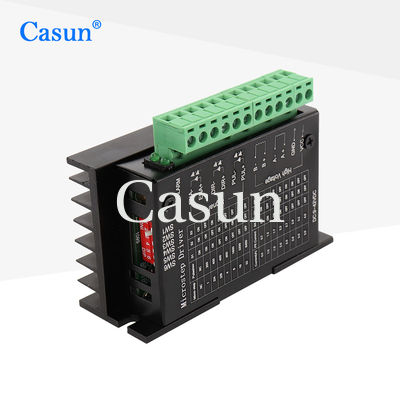

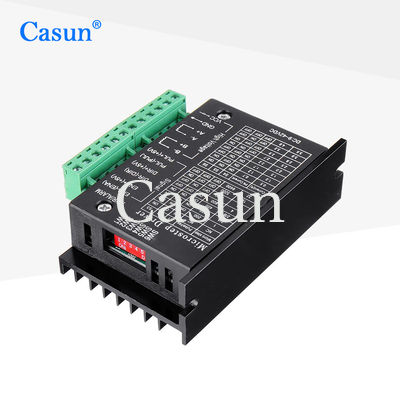

32 Subdivision 4A 42V Pulse 2 Phase Stepper Motor Driver For 3D Printer

TB6600 Stepper Motor Driver 32 subdivision 4.0A 42V pulse 3-24v controller 3D Printer driver



Product Name TB6600
Size 96*57*28mm
Supply voltage 9-24V
Color Black



Specifications:

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments, for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)

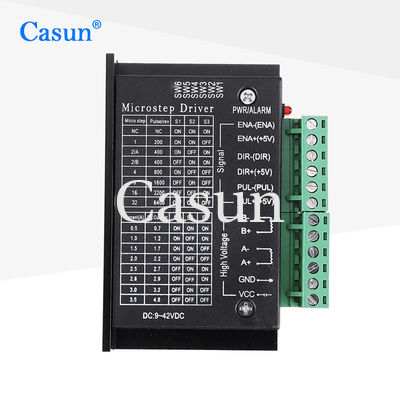

Micro stp Pulse/rev S1 S2 S3
NC NC ON ON ON
1 200 ON ON OFF
2/A 400 ON OFF ON
2/B 400 OFF ON ON
4 800 ON OFF OFF
8 1600 OFF ON OFF
16 3200 OFF OFF ON
32 6400 OFF OFF OFF
Current(A) PK Current S4 S5 S6
0.5 0.7 ON ON ON
1.0 1.2 ON OFF ON
1.5 1.7 ON ON OFF
2.0 2.2 ON OFF OFF
2.5 2.7 OFF ON ON
2.8 2.9 OFF OFF ON
3.0 3.2 OFF ON OFF
3.5 4.0 OFF OFF OFF





Features:


Suitable for stepping motor: 42-phase, 47-phase and 86-phase (4-wire, 6-wire and 8-wire)

1, 9V-42V DC power supply;

2, H-bridge bipolar constant-phase flow-driven;

3, the maximum output current of 4.0A eight optional;

4, up to 32 segments of six kinds of sub-modes available;

5, the input signal is high-speed optical isolation.

6, standard common anode single pulse interface;

7, offline hold function;

8, semi-enclosed chassis can accommodate more demanding environment;

9, provide energy semiautomatic current lock function;

10, built-in thermal protection and overcurrent protection.
