Home > products > Special Shaft Stepper Motor > Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm

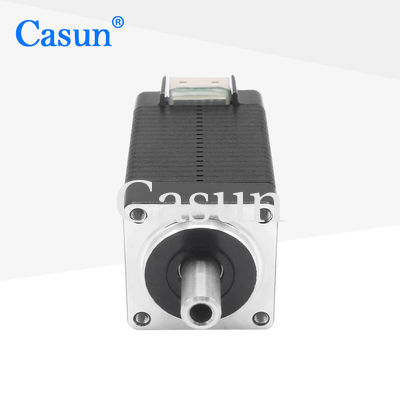

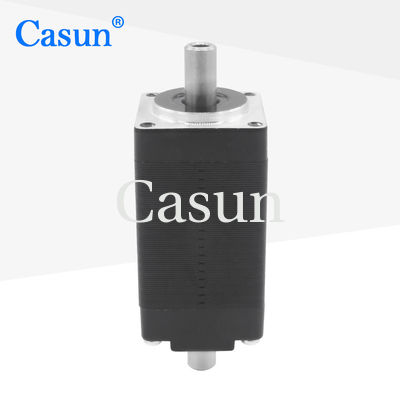

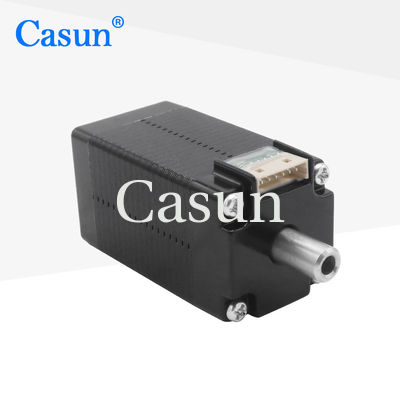

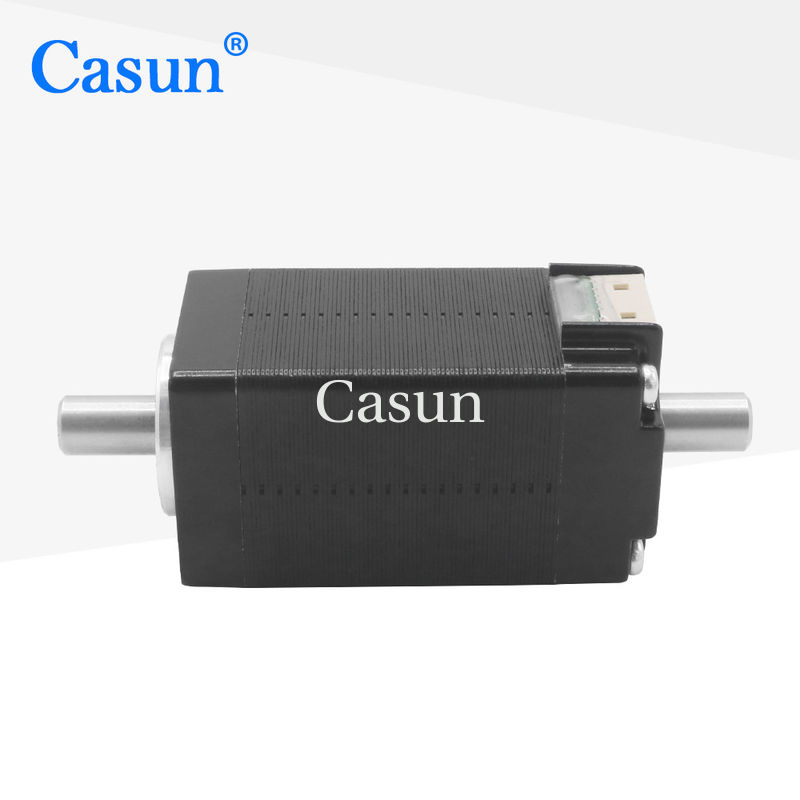

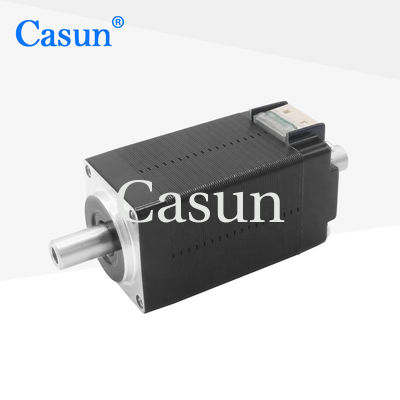

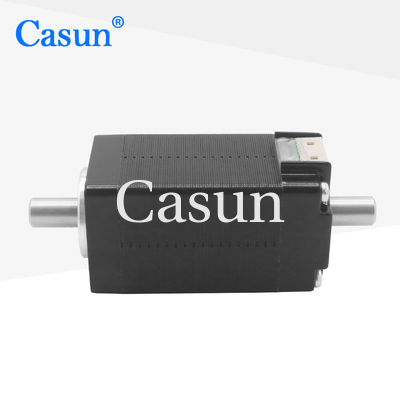

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 20SHD0250-10SK

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $6.86-$10.5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

38.5mm DC Dual Shaft Stepper Motor

,

28x28 Dual Shaft Stepper Motor

,

Nema 11 Hollow Shaft Stepper Motor

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 20 double axis hollow stepper motor has a dual axis structure.

Generally, one axis is used for rotation, while the other axis can be used for transmitting signals, pumping gas or liquid, etc.

It is very suitable for situations that require multiple operations at the same time.



Features:

  • Versions in unipolar or bipolar are offered.

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • Within 48 hours, one of our engineers will contact you with the best option.

  • Upon request, modifications

Dimensions

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.6 A

Holding Torque



32 mN.m

Resistance



9.0 Om

Inductance



3.2mH

Rotor Inertia



3.8 g-cm²

Motor weight



0.1 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Casun Model General Model Angle Motor Length Rated Current Holding Torque
B20SHD4353-10 8HS11-0204S 1.8° 28mm 0.2A 0.016 N.m
  8HS12-0506S 1.8° 28mm 0.5A 0.018N.m
20SHD0501-10 8HS13-0604S 1.8° 34.3mm 0.6A 0.018N.m
  8HS15-0304S 1.8° 38mm 0.3A 0.03N.m
20SHD4255-10X 8HS15-0604S 1.8° 38mm 0.6A 0.04N.m
20SHD4101-20   1.8° 42mm 0.8A 0.03N.m



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 1 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 2 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 3 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 4





Please click the "Get  a quote" button below to tell us your requirements.
