Home > products > Pancake Stepper Motor > Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval

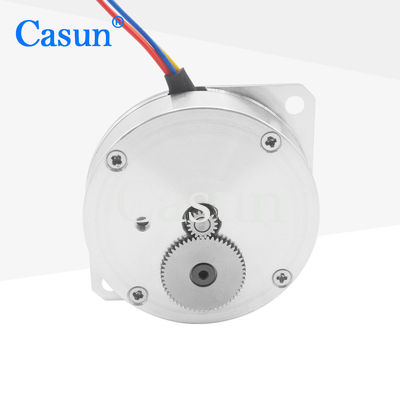

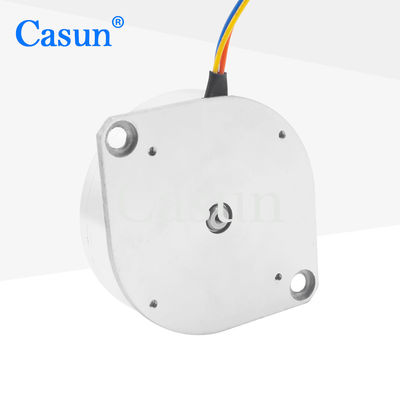

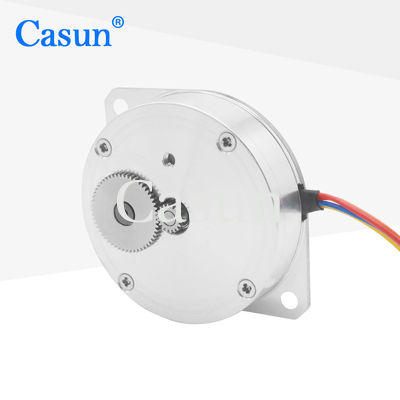

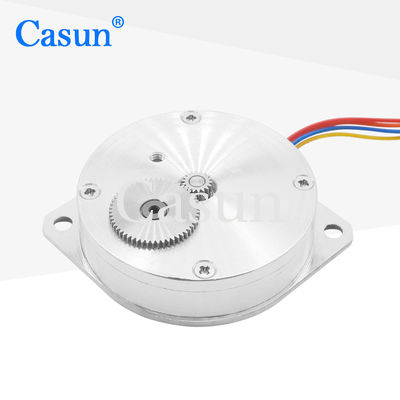

Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval
Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval
Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval
Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval
Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval
Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval

Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 46SHY4401-2A1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13.8-15.38

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Flat Type Pancake Stepper Motor

,

Pancake Hybrid Stepping Motor

,

CE Approval Pancake Stepper Motor

Motor:
Flat Motor
Holding Torque:
52mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Motor:
Flat Motor
Holding Torque:
52mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

If our basic motor does not satisfy your requirements, we may customise the motor to meet your specifications.


unique shafts, winding parameters, installation measurements, lead wires with unique needs, connections, and so forth are examples of customised content.


Features:

*Both bipolar and unipolar versions available.

*Stepper hybrid construction

*Available in single and double shaft configurations.

*Customizations on request are CE and RoHS approved.

Dimensions

Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval 0







Motor Specifications



Step Angel



1.8 °

Fram Size



46mm

Number of Phase



2 Phase

Rated Current



1.0Amp

Holding Torque



52 mN.m

Resistance



2.5 om

Inductance



1.7mH

Rotor Inertia



7 g-cm²

Motor weight



0.1kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval 1 Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval 2 Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval 3 Flat type of stepper motor Pancake Stepper Motor Hybrid Stepping Motor CE Approval 4





Please click the "Get  a quote" button below to tell us your requirements.
