products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

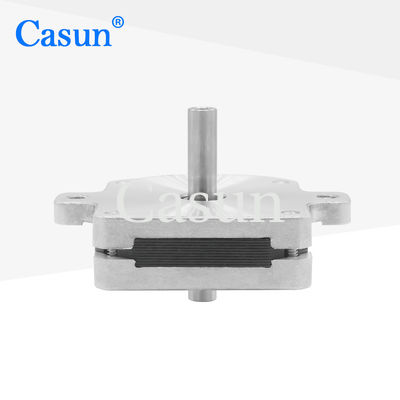

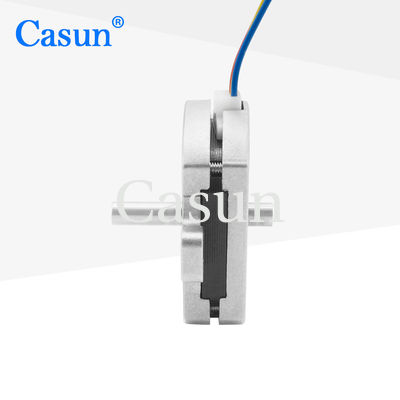

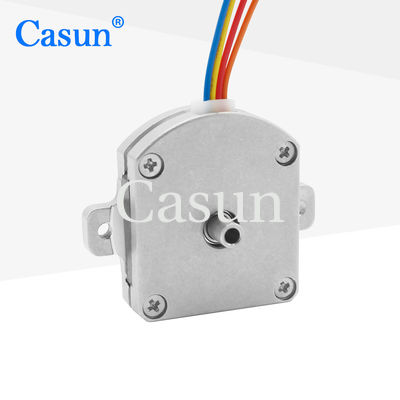

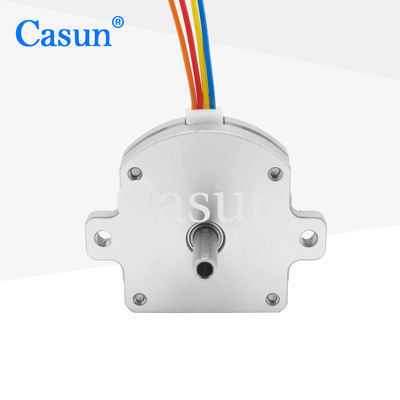

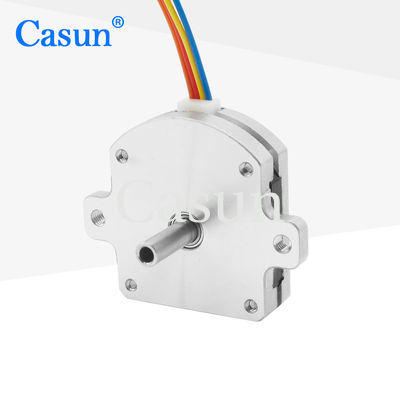

Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer

name

Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer

Brand Name: Casun
Model Number: P28SHD4611-12SK
MOQ: 1PC
Price: $13.3-$13.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Flat 28mm PM Stepper Motor

,

Low Noise Stepper Motor Flat

,

Laser Printer PM Stepper Motor

Product Description

Flat Stepper motor small volume low noise 2 Phase 1.8 Degree 28mm PM Stepper Motor for Laser Printer

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



16 mN.m

Resistance



3.5 om

Inductance



0.9mH

Rotor Inertia



2 g-cm²

Motor weight



0.03kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer 1 Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer 2 Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer 3 Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer 4





Please click the "Get  a quote" button below to tell us your requirements.
