Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor

Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor

Casun 3.2V Pancake Stepper Motor

100mN Flat Step Motor

Casun Flat Step Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

46SHY4001-3A

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$13.8-$15.38
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

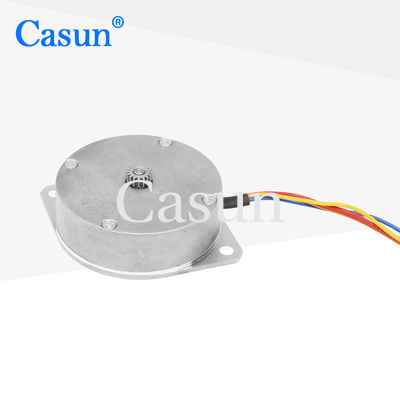

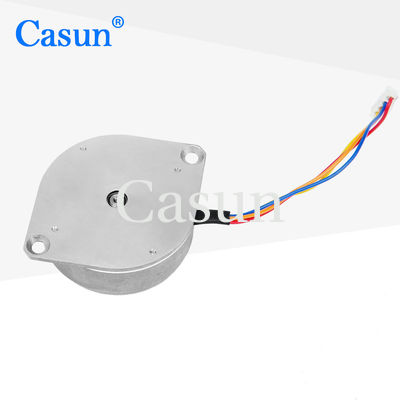

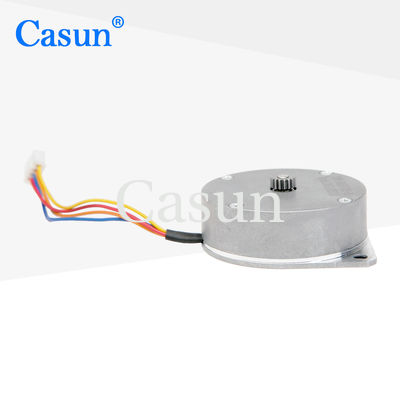

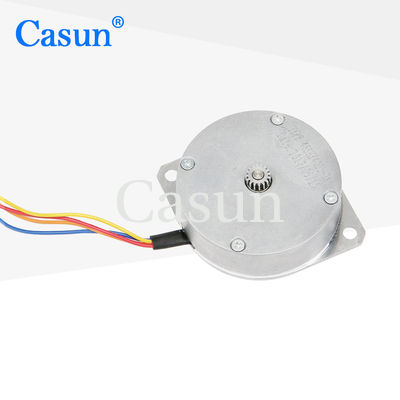

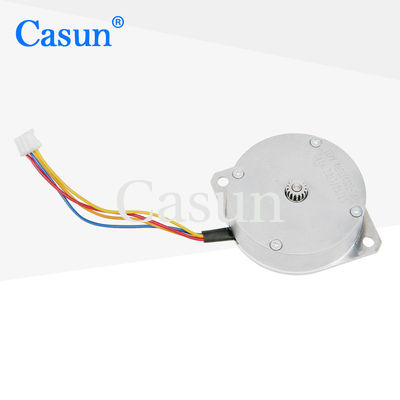

Casun pancake stepper motor 3.2V 1.8 Degree 100mN Flat stepping motor

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



46mm

Number of Phase



2 Phase

Rated Current



1.0Amp

Holding Torque



100mN.m

Resistance



3.2 om

Inductance



2.7mH

Rotor Inertia



11g-cm²

Motor weight



0.1kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor 1 Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor 2 Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor 3 Casun 3.2V Pancake Stepper Motor 1.8 Degree 100mN Flat Step Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
