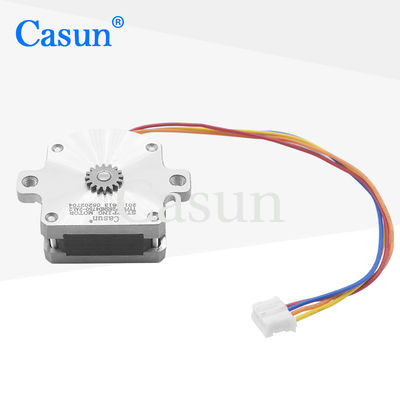

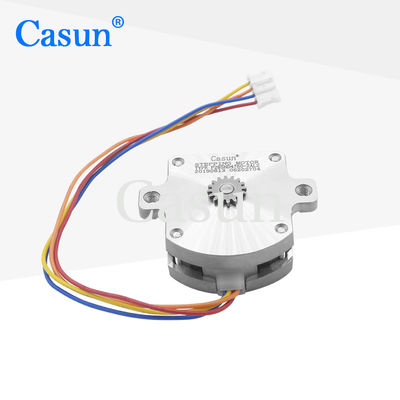

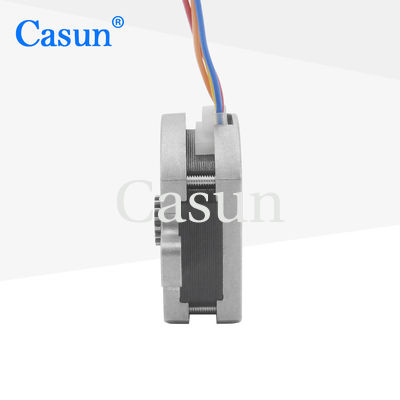

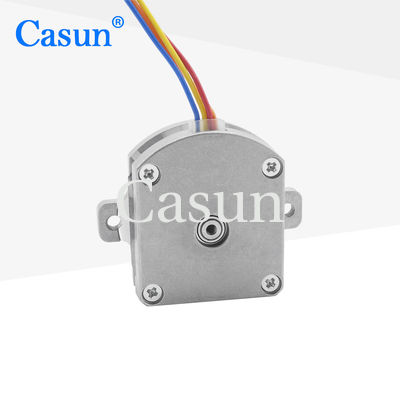

Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper
Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper
Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper
Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper
Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper
Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper

Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: P28SHD4750-2AL2-1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12.3-$13.8

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Unipolar Pancake Stepper Motor

,

0.5A 25mN.M Flat Stepper

,

0.5A 25mN.M Pancake Stepper Motor

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Pancake step motor 1.8 degree 0.5A 25mN.m micro flat stepper motor

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



25 mN.m

Resistance



3.1 om

Inductance



0.95mH

Rotor Inertia



2 g-cm²

Motor weight



40g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper 1 Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper 2 Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper 3 Unipolar Pancake Stepper Motor 1.8 Degree 0.5A 25mN.M Flat Stepper 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:

Nema 23 Flat Stepper Motor,

Casun Nema 23 Flat Stepper,

Casun Flat Stepper Motor High Torque
