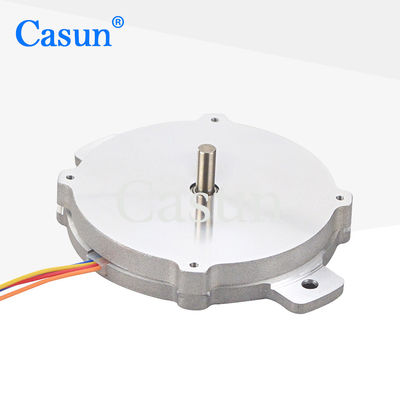

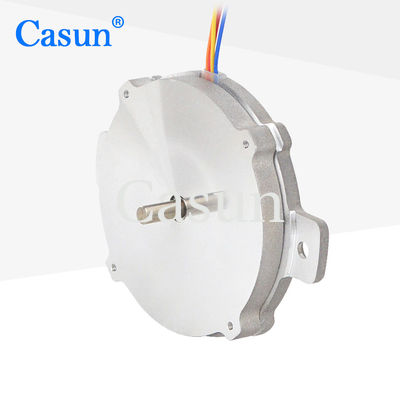

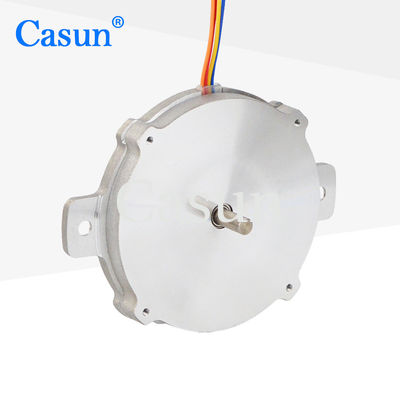

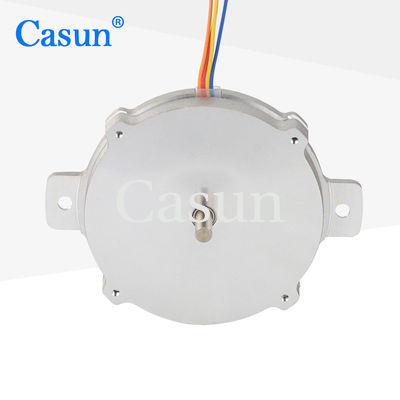

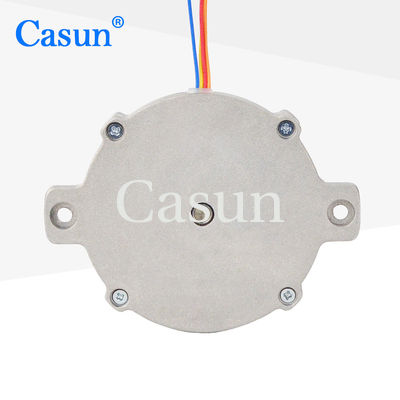

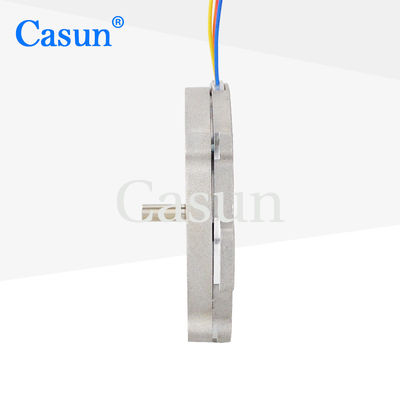

57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHY4001-10

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12.3-$13.84

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
High Light:

NEMA23 Stepper Motor Pancake

,

9.6mm Stepper Motor Pancake

,

Casun Stepper Motor Pancake

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA23 Flat stepper motor 57mmx57mmx9.6mm pancake step motor for medical beauty equipment robotics

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 0





57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 1

Motor Specifications



Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



0.8A

Holding Torque



60mN.m

Resistance



3.5 om

Inductance



1.8mH

Rotor Inertia



15 g-cm²

Motor weight



75g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 2 57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 3 57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 4 57x57x9.6mm NEMA23 Stepper Motor Pancake For Medical Equipment Robotics 5





Please click the "Get  a quote" button below to tell us your requirements.
