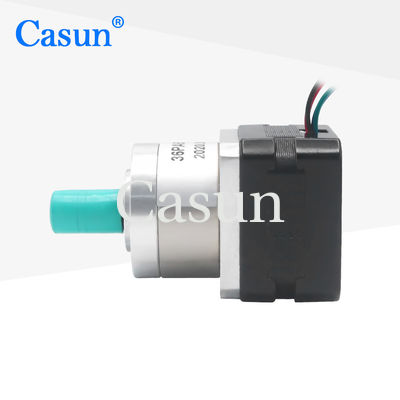

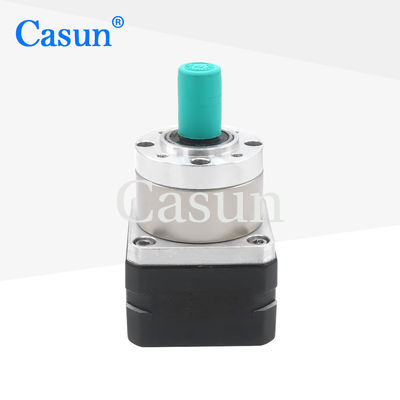

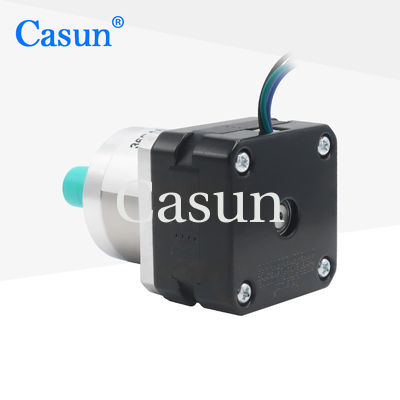

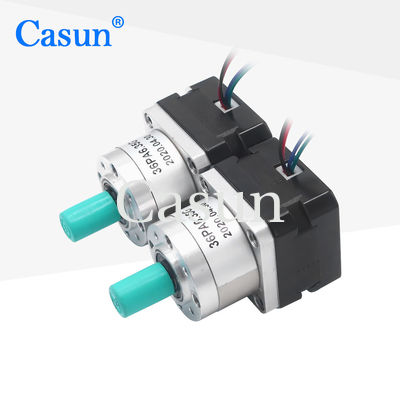

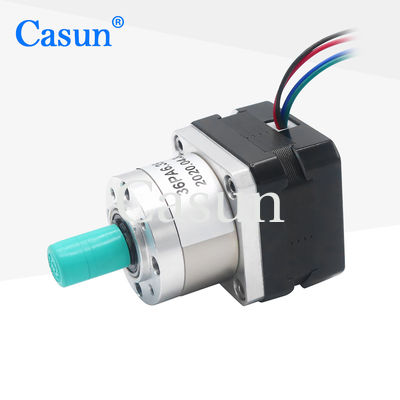

1.8Deg NEMA 17 Geared Stepper Motor 42x42x48mm Hybrid Stepping Motor

1.8Deg NEMA 17 Geared Stepper Motor 42x42x48mm Hybrid Stepping Motor

Brand Name:	Casun
Model Number:	42SHD4516-7GH
MOQ:	1PC
Price:	$23.3-$26.3
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Type:

Small Planetary Gearbox

Step Angle(degrees):

1.8 Degree

Key Words:

Geared Stepper Motor

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

1.8Deg NEMA 17 Geared Stepper Motor

NEMA 17 Geared Stepper Motor 42x42

48mm Hybrid Stepping Motor

Product Description

1.8Deg NEMA 17 Geared Stepper Motor 42x42x48mm Hybrid Stepping Motor

42x42x48mm 1.8 Degree 2 Phase Ratio 6.75:1 Nema 17 Gear Reducer Stepper Motor. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	200 mN.m
Resistance	1.8 Ω
Inductance	2.4 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.5 kg
Gear Reduction Ratio	6.75:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		13.76	80%
60 mm		19.2	80%
Various	26.8 mm	42.7	70%
Various	42.7 mm	51	70%
Various	42.7 mm	71	70%
Various	42.7 mm	99.5	70%
Various	42.7 mm	139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
