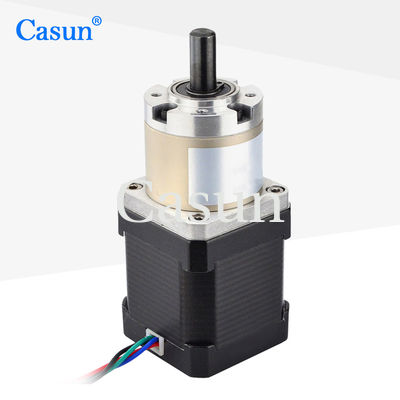

42x42mm NEMA 17 Geared Stepper Motor 2.77V With Gear Box Gear Reducer

42x42mm NEMA 17 Geared Stepper Motor 2.77V With Gear Box Gear Reducer

Brand Name:	Casun
Model Number:	42SHD4419-27G
MOQ:	1PC
Price:	$26.46-$29.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angle(degrees):

1.8 Degree

Rated Voltage:

2.77V

Motor Length:

48MM

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

42x42mm NEMA 17 Geared Stepper Motor

42mm NEMA 17 Geared Stepper Motor

Geared Stepper Motor 2.77V

Product Description

42x42mm NEMA 17 Geared Stepper Motor 2.77V With Gear Box Gear Reducer

42mmx42mm 17HS19-168S-PG27 NEMA 17 stepper motor with gear box gear reducer - a high quality stepper motor solution. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in various sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	440 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	38g-cm²
Motor Weight	0.5 kg
Gear Reduction Ratio	26.8:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Ready to discuss your specific requirements?

Get a Quote
