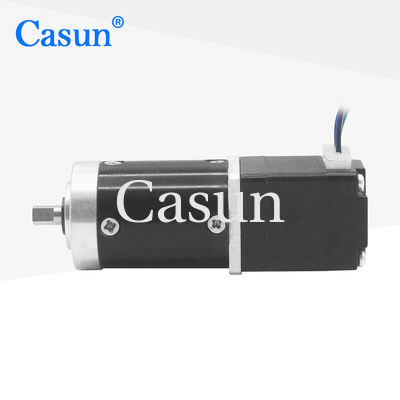

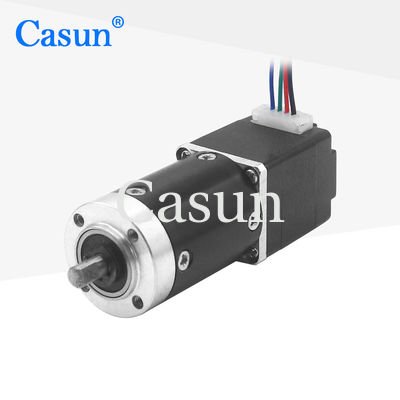

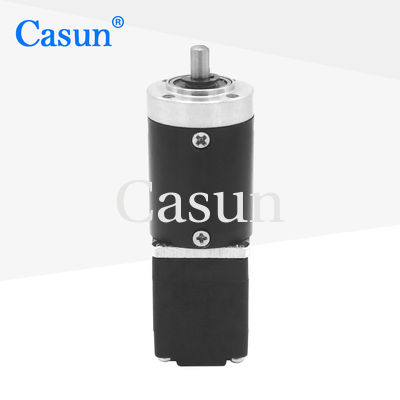

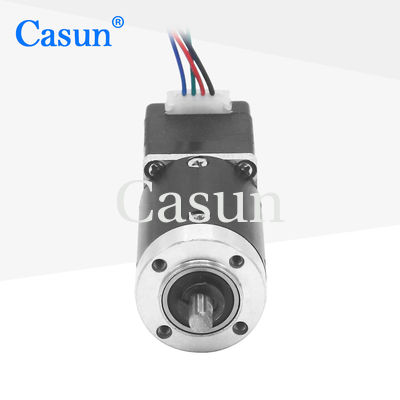

Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox

Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox

  • High Light

    24.8mm NEMA 8 Geared Stepper Motor

    ,

    Casun NEMA 8 Geared Stepper Motor

    ,

    stepper motor with planetary gearbox

  • Key Words
    Geared Stepper Motor
  • Voltage
    5.04V DC
  • Weight
    0.08KG
  • Step Angle(degrees)
    1.8 Degree
  • Ratio
    13.76:1
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROHS,ISO
  • Model Number
    B20SHD4701-14G1
  • Minimum Order Quantity
    1PC
  • Price
    $27.53-$30.53
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox

Stepper Motor 20mmx20mmx24.8mm Miniature Stepper Motor with Planetary Gearbox for Medical Beauty Equipment

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.24Amp

Holding Torque



10mN.m

Resistance



2 ohm

Inductance



5mH

Rotor Inertia



2g-cm²

Motor weight



0.08kg

Gear Reduction Ratio





13.76:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox 1 Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox 2 Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox 3 Casun 20x20x24.8mm NEMA 8 Geared Stepper Motor With Planetary Gearbox 4





Please click the "Get  a quote" button below to tell us your requirements.
