42X42X34mm NEMA 17 Geared Stepper Motor 12 Volt Bipolar Or Unipolar Version

42X42X34mm NEMA 17 Geared Stepper Motor 12 Volt Bipolar Or Unipolar Version

Brand Name:	Casun
Model Number:	42SHD0001-5G
MOQ:	1PC
Price:	$22.3-$25.3
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

0.4A

Product Name:

Stepper Motor With Geared

Motor Length:

34mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

34mm NEMA 17 Geared Stepper Motor

42X42 NEMA 17 Geared Stepper Motor

NEMA17 Geared Stepper Motor 12 Volt

Product Description

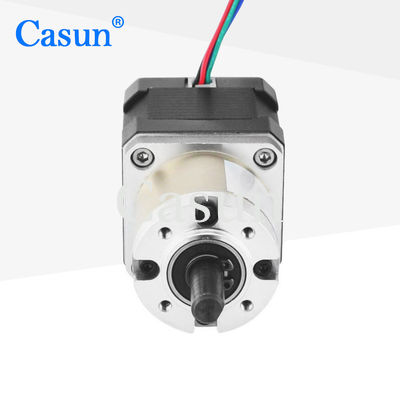

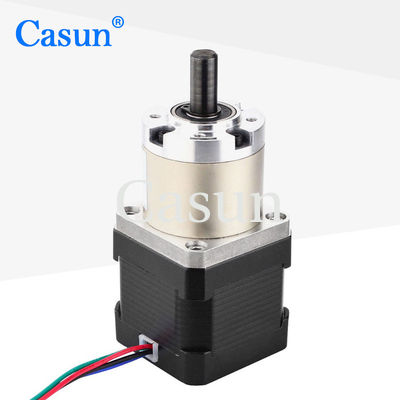

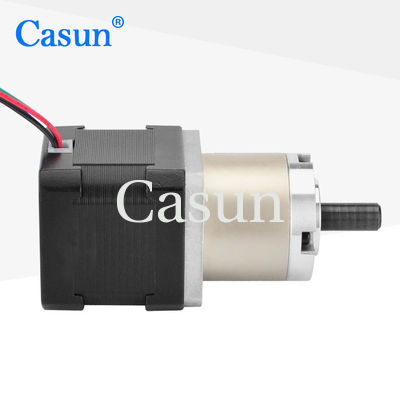

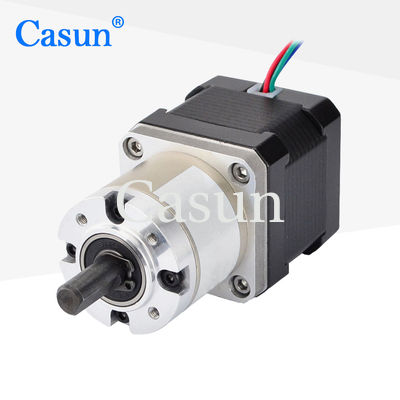

42X42X34mm NEMA 17 Geared Stepper Motor 12 Volt Bipolar Or Unipolar Version

42MMX42MMX34MM geared stepper motor 12V gear reduction motor for textile machinery, conveying, and packaging machines. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	260 mN.m
Resistance	30 Ω
Inductance	37 mH
Rotor Inertia	38 g·cm²
Motor Weight	0.35 kg
Gear Reduction Ratio	5.18:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76
60 mm		19.2
	26.8	42.7 mm	51
			71
			99.5
			139

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote
