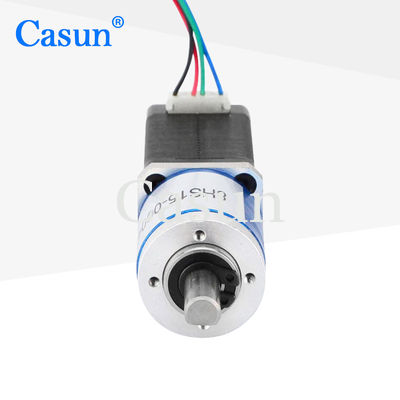

20mm NEMA 8 Geared Stepper Motor 2 Phase 0.2Amp Casun Stepper Motor'

20mm NEMA 8 Geared Stepper Motor 2 Phase 0.2Amp Casun Stepper Motor'

  • High Light

    20mm NEMA 8 Geared Stepper Motor

    ,

    0.2Amp NEMA 8 Geared Stepper Motor

    ,

    0.2Amp Casun Stepper Motor

  • Current / Phase
    0.2Amp
  • Product Name
    Stepper Motor With Geared
  • Motor Length
    28mm
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROHS,ISO
  • Model Number
    20SHD4303-5G-2
  • Minimum Order Quantity
    1PC
  • Price
    $23.8-$26.9
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

20mm NEMA 8 Geared Stepper Motor 2 Phase 0.2Amp Casun Stepper Motor'

Small Geared Stepper Motor 20mm 2 Phase Miniature Deceleration Stepper Motor for Food Machinery

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

20mm NEMA 8 Geared Stepper Motor 2 Phase 0.2Amp Casun Stepper Motor' 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.2 Amp

Holding Torque



14 mN.m

Resistance



22om

Inductance



6.0mH

Rotor Inertia



2g-cm²

Motor weight



0.1kg

Gear Reduction Ratio





4.75:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139
