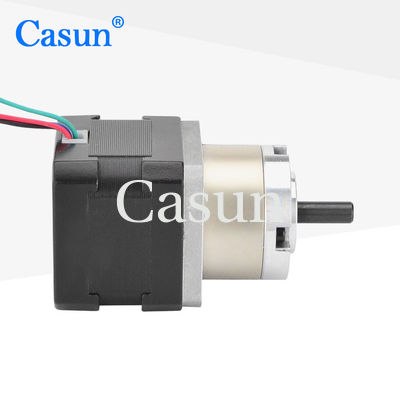

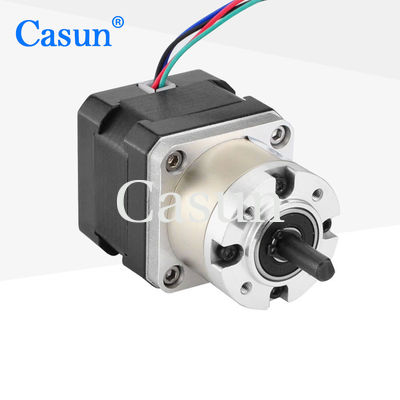

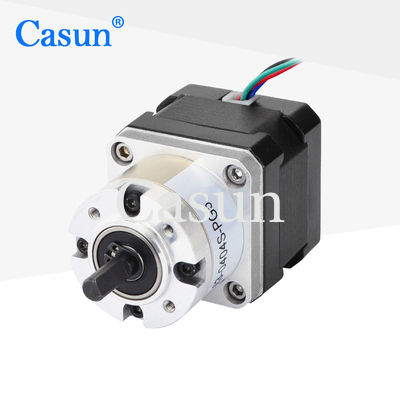

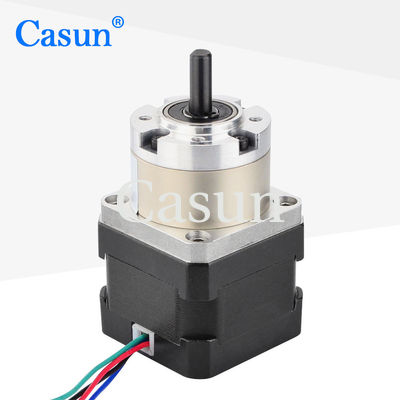

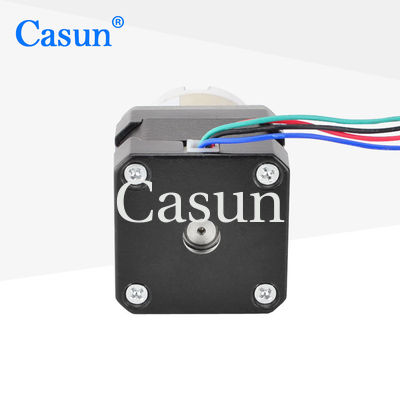

48mm NEMA 17 Geared Stepper Motor Casun Hybrid Stepper Motor

48mm NEMA 17 Geared Stepper Motor Casun Hybrid Stepper Motor

Brand Name:	Casun
Model Number:	42SHD4419-5G
MOQ:	1PC
Price:	$24.8-$27.8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

1.68Amp

Product Name:

Stepper Motor With Geared

Motor Length:

48mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Geared Stepper Motor 440mN

48mm NEMA 17 Geared Stepper Motor

Casun Hybrid Stepper Motor

Product Description

48mm NEMA 17 Geared Stepper Motor Casun Hybrid Stepper Motor

Deceleration stepper motor 440mN 0.5kg NEMA17 42mmx42mm stepper gear motor for chemical instruments and other industries. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	440 mN.m
Resistance	1.65Ω
Inductance	2.8mH
Rotor Inertia	38g-cm²
Motor Weight	0.5kg
Gear Reduction Ratio	5.18:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76
60 mm		19.2
26.8	42.7 mm	51	70%
71		99.5
139

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options

Encoder

Brake

Gearbox

Shaft
