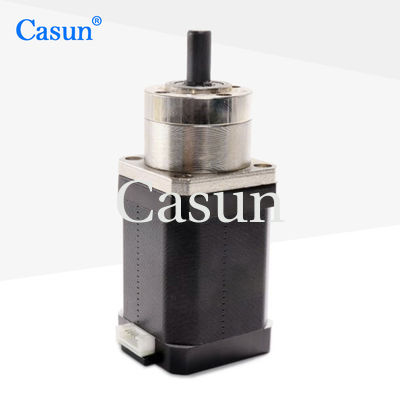

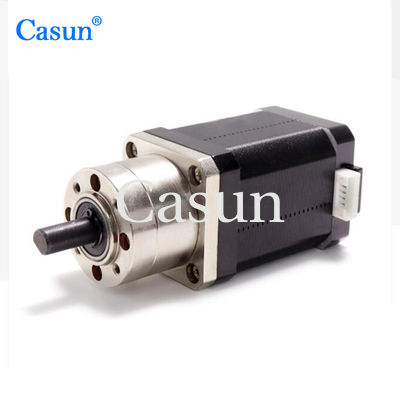

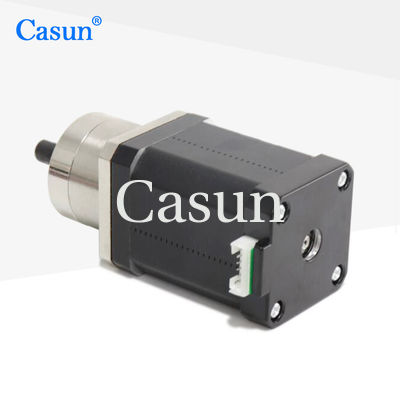

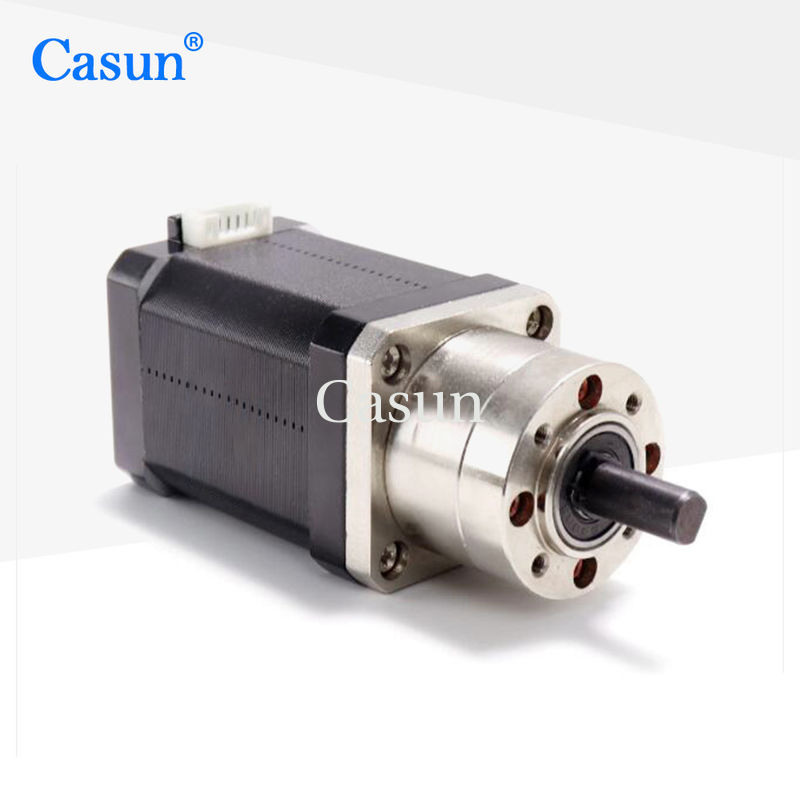

Casun Planetary Gear Nema 17 Stepping Motor For Food Machinery

Casun Planetary Gear Nema 17 Stepping Motor For Food Machinery

Brand Name:	Casun
Model Number:	42SHG4419-51G
MOQ:	1PC
Price:	$32.38-$35.38
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

1.68Amp

Product Name:

Stepper Motor With Geared

Motor Length:

48mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Planetary Gear Nema 17 Stepping Motor

Casun Planetary Gear Nema 17

Casun Nema 17 Stepping Motor

Product Description

Casun Planetary Gear Nema 17 Stepping Motor For Food Machinery

The Casun Nema 17 gearbox stepper motor offers a cost-effective solution for packaging and food machinery applications. This 42mm Hybrid Stepper Motor Series provides powerful holding torque in various sizes. When used with a microstepping driver, it reduces vibration and achieves higher step resolution. Choose from baseline versions or request customized configurations to meet specific requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 Amp
Holding Torque	440 mN.m
Resistance	1.65 Ω
Inductance	2.8 mH
Rotor Inertia	38 g·cm²
Motor Weight	0.55 kg
Gear Reduction Ratio	50.9:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		35 mm	13.76	80%
60 mm		19.2	80%
	26.8	80%
	42.7 mm	51	70%
		71	70%
		99.5	70%
		139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
