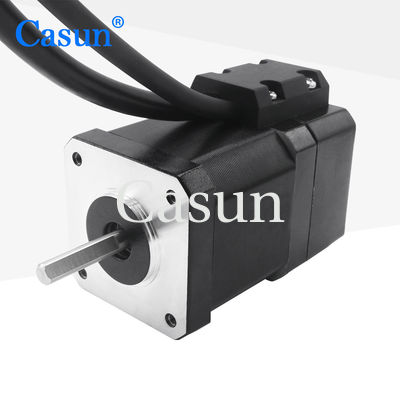

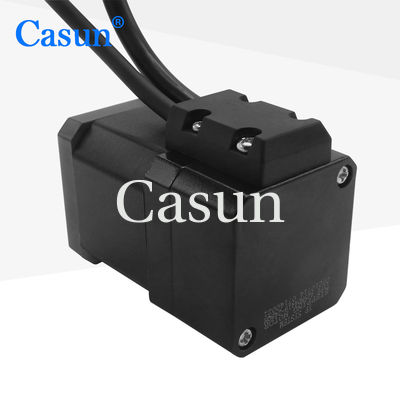

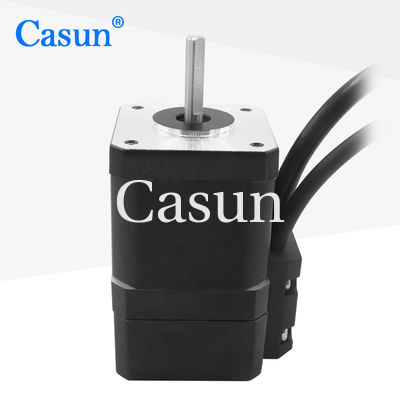

Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC

name

Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC

Brand Name: Casun
Model Number: 42SHD4419-24BQH
MOQ: 1PC
Price: $19.94-$24.94
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Color:
Black
Current / Phase:
1.68Amp
Holding Torque:
540mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

0.5kg NEMA 17 Closed Loop Stepper Motor

,

1.68Amp closed loop nema 17

,

nema 17 closed loop stepper For CNC

Product Description

Nem17 Stepper Motor Closed Loop 540mN.m 1.68Amp 0.5kg with Encoder with Brake Easy Servo Motor for CNC

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



1.68Amp

Holding Torque



540mN.m

Resistance



1.65 hm

Inductance



2.8mH

Rotor Inertia



82g-cm²

Motor weight



0.5 kg

Encoder Pulsh



2500

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC 1 Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC 2 Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC 3 Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC 4





Please click the "Get  a quote" button below to tell us your requirements.
