products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Close Loop Stepper Motor
Created with Pixso.

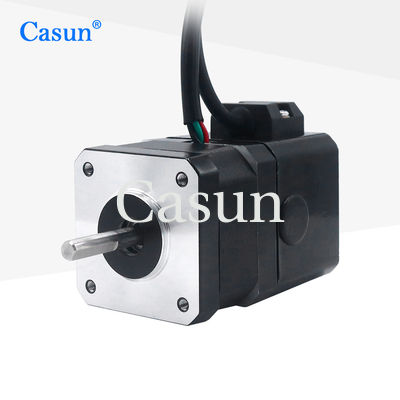

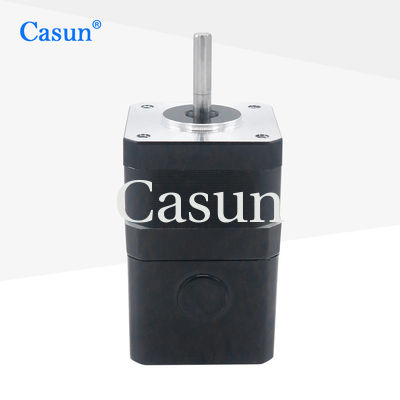

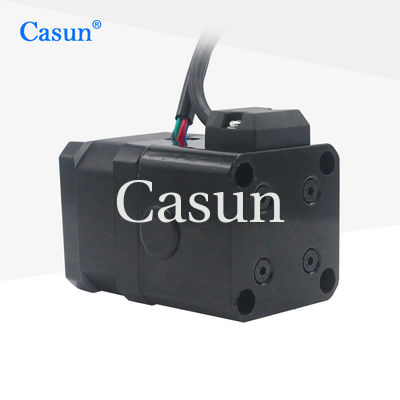

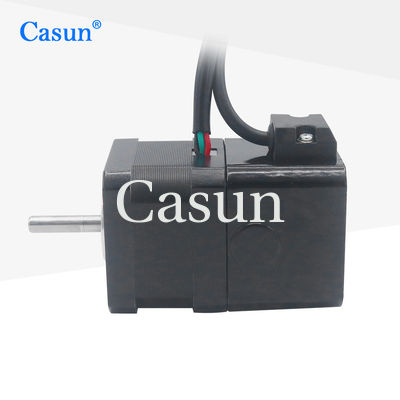

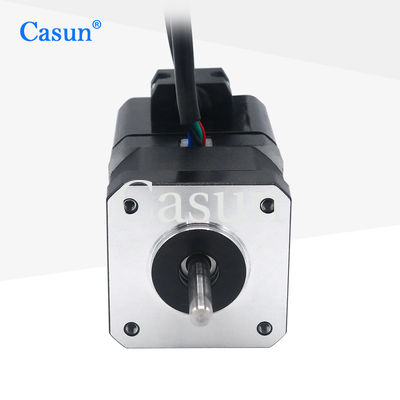

Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC

Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC

Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC

Brand Name: Casun
Model Number: 42SHD4034-24BH-HP42
MOQ: 5pcs
Price: $22-$19
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Shaft:
24
Torque:
300mN.m
Current:
1.2A
Voltage:
6.0V
Body:
67mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 17 closed loop stepper motor with encoder

,

Nema 17 stepper motor for CNC and 3D printer

,

42x34mm stepper motor with 1.2A for industrial use

Product Description
Nema 17 Closed Loop Stepper Motor with Encoder
Nema 17 closed loop stepper motor, 42×42×34mm, 1.8 degree step angle, 2-phase design with 300mN.m holding torque. Ideal for CNC applications, medical examination equipment, 3D printers, and industrial control systems.
Product Features
  • Bipolar or unipolar versions available
  • Custom services and contract manufacturing
  • Single- or double-shaft versions available
  • Professional drivetrain solution specialist
  • Customizations available upon request
Dimensions
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC 0
Motor Specifications
ParameterSpecification
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.2 A
Holding Torque300 N.m
Resistance5.0 ohm
Inductance6.2 mH
Rotor Inertia38 g-cm²
Motor Weight0.8 kg
Shaft24 mm
ConnectionBipolar
Operating Specifications
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Gear Box
Housing Material: Metal
Bearing at Output: Ball Bearings
Max. Radial Load (12mm from flange): ≤80N
Max. Shaft Axial Load: ≤30N
Radial Play of Shaft (near to Flange): ≤0.06mm
Axial Play of Shaft: ≤0.3mm
Backlash at No-load: 1.5°
Customization Options
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to:
  • Special shafts
  • Winding parameters
  • Installation dimensions
  • Lead wires with special requirements
  • Connectors
Available Options:
Encoder | Brake | Gearbox | Shaft
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC 1 Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC 2 Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC 3 Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC 4
Please click the "Get a quote" button below to tell us your requirements.
Get a Quote
Tags:

Nema 17 closed loop stepper motor with encoder

Nema 17 stepper motor for CNC and 3D printer

42x34mm stepper motor with 1.2A for industrial use
