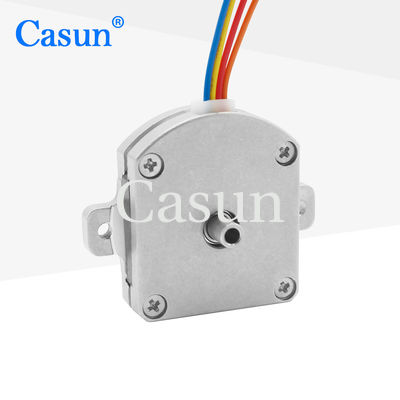

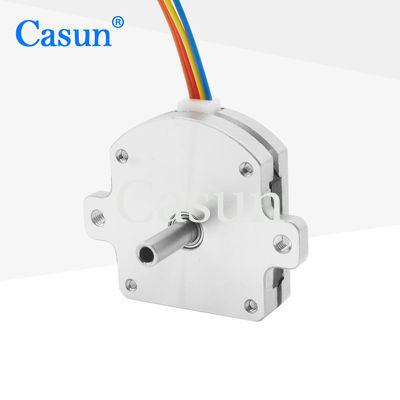

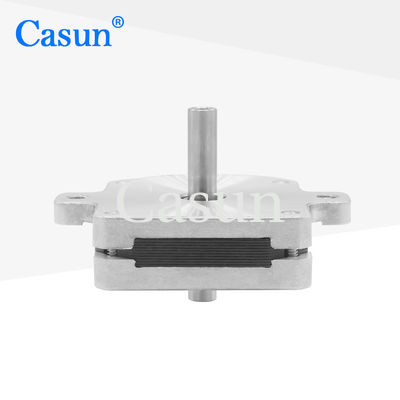

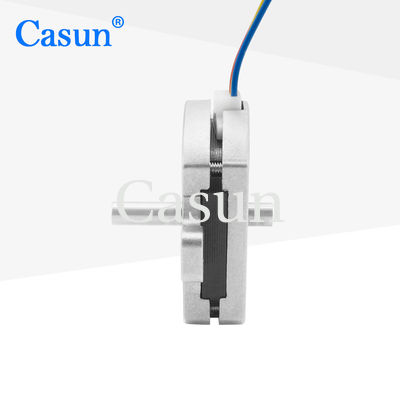

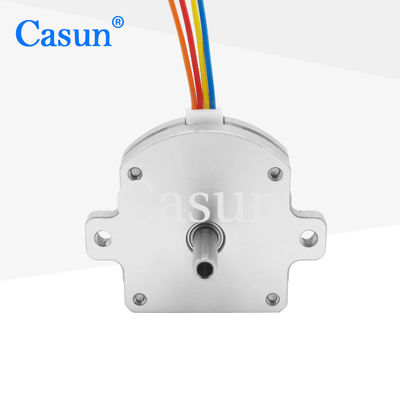

Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder
  • Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder

Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number P28SHD4611-12SK
Product Details
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
1.7V
Rate Current:
0.5A
Holding Torque:
16mN.m
Detent Torque:
2mN.m
High Light:

Casun Flat Stepper Motor

,

Micro Flat Stepper Motor Nema 11

,

Stepper Motor Nema 11 1.7V 0.5A

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$11-15
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Low Price Nema 11 Micro Flat Stepper Motor Stepper 1.7V 0.5A Motor for Printing Machinery Feeder

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Micro Flat Stepper Motor Nema 11 1.7V 0.5A For Printing Machinery Feeder 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28 mm

Number of Phase



2 Phase

Rated Current



0.5A

Holding Torque



16 mN.m

Resistance



3.5 om

Inductance



0.90mH

Rotor Inertia



2 g-cm²

Motor weight



0.02 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
