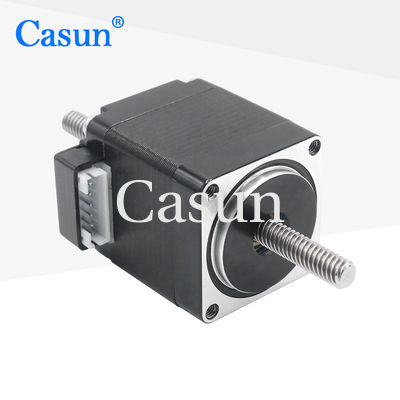

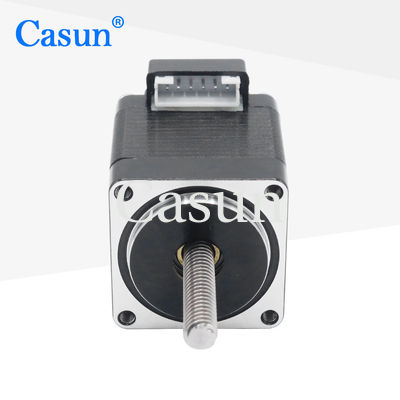

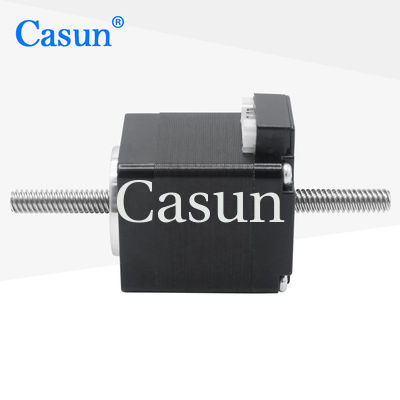

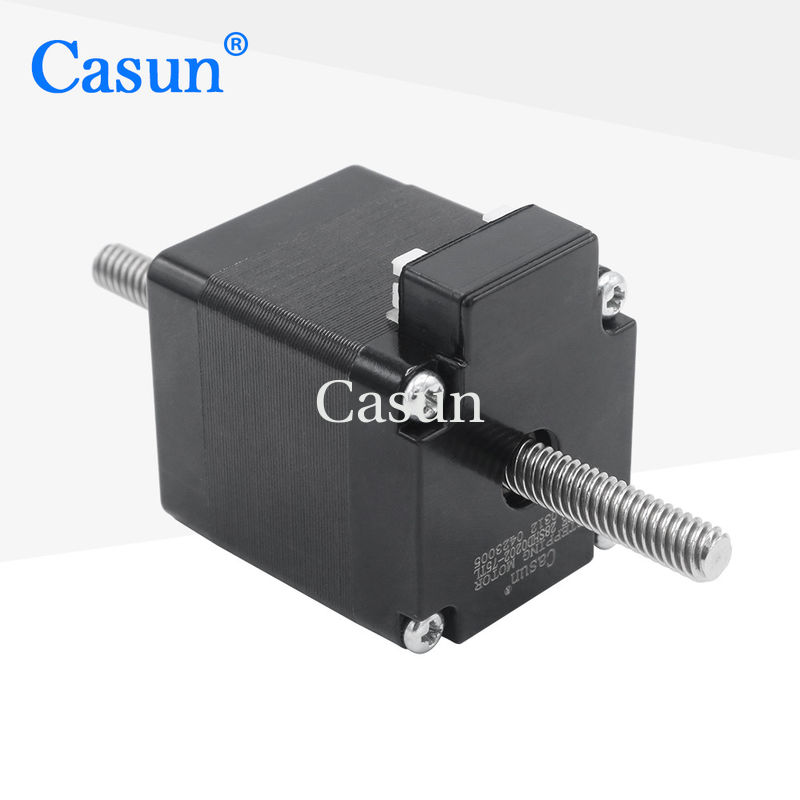

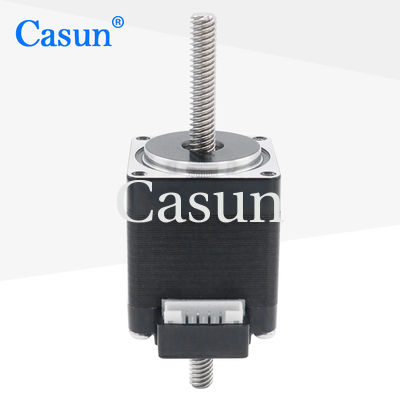

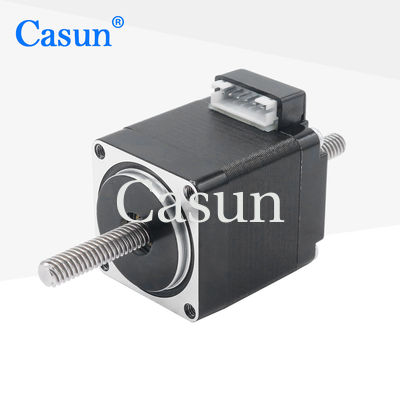

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD0202-75TL

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.94-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

50mNM NEMA 11 Stepper Motor

,

0.12kg NEMA 11 Stepper Motor

,

Tr5X4 Lead Screw Stepper Motor

Color:
Black
Current:
0.67Amp
Holding Torque:
50mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.67Amp
Holding Torque:
50mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA11through lead screw stepper motor with lead screw holding torque 50mN.m 0.12kg tr5*4 for 3D

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.67Amp

Holding Torque



50 mN.m

Resistance



5.6 ohm

Inductance



3.9mH

Rotor Inertia



9g-cm²

Motor weight



0.12kg

Lead Screw



Tr5X4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar 1 50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar 2 50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar 3 50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar 4





Please click the "Get  a quote" button below to tell us your requirements.
