0.12kg Tr5*2 NEMA 14 Stepper Motor With Lead Screw Stepper Motor Non Captive

0.12kg Tr5*2 NEMA 14 Stepper Motor With Lead Screw Stepper Motor Non Captive

Brand Name:	Casun
Model Number:	35SHD0303-T1
MOQ:	1PC
Price:	$0.94-$11.8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.4Amp

Weight:

0.09kg

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Tr5*2 Lead Screw Stepper Motor

Tr5*2 NEMA 14 Stepper Motor

0.12kg Stepper Motor Non Captive

Product Description

0.12kg Tr5*2 NEMA 14 Stepper Motor With Lead Screw

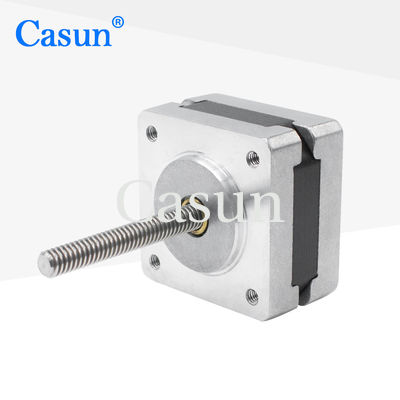

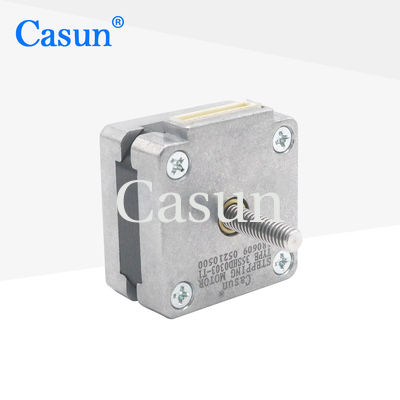

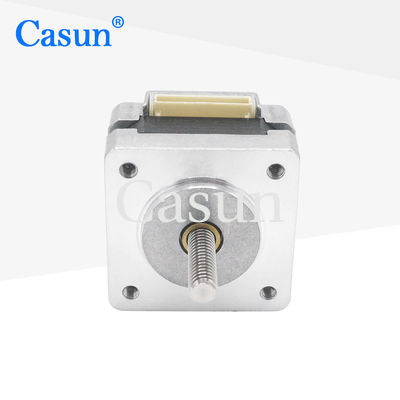

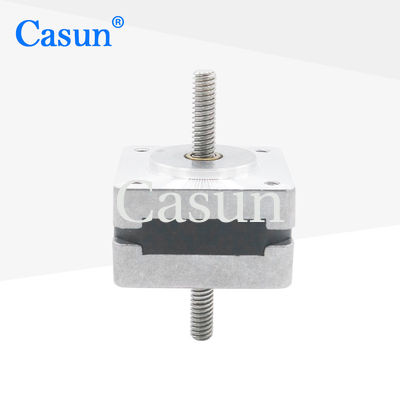

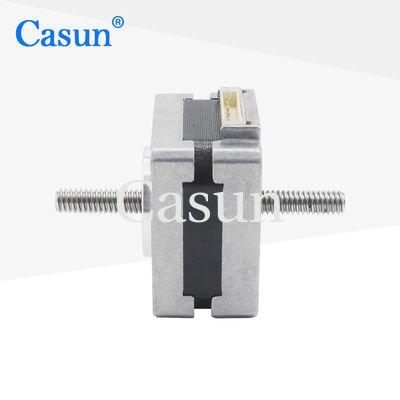

NEMA14 non-captive stepper motor with lead screw, featuring 0.12kg holding torque and TR5*2 configuration for 3D printing applications. The 42mm Hybrid Stepper Motor Series delivers powerful holding torque in various sizes. Use with a microstepping driver to minimize vibration and achieve superior step resolution.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28mm
Number of Phase	2 Phase
Rated Current	0.4Amp
Holding Torque	2.5kg (300pps)
Resistance	22 ohm
Inductance	15mH
Rotor Inertia	10g-cm²
Motor Weight	0.09kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Shaft Radial Play: 0.02Max. (450g-load)

Shaft Axial Play: 0.08Max. (450g-load)

Max. Radial Force: 28N (20mm from the flange)

Max. Axial Force: 10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Shaft Type	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motors don't meet your requirements, we can customize motors to your exact specifications. Customization options include special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and more.

Available Options

Please click the button below to discuss your specific requirements with our engineering team.

Get a Quote
