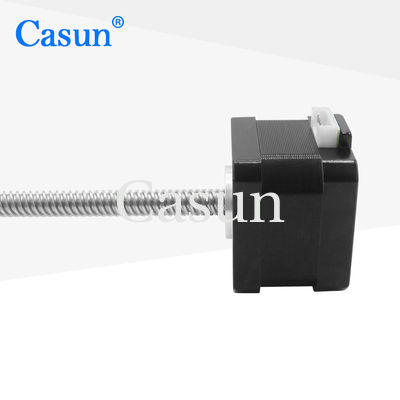

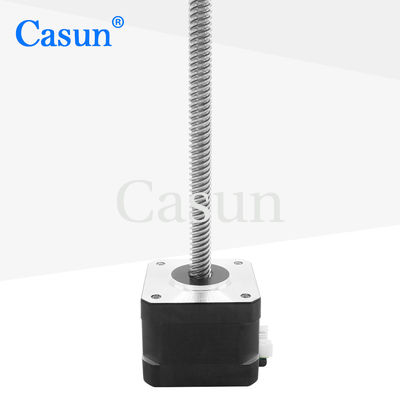

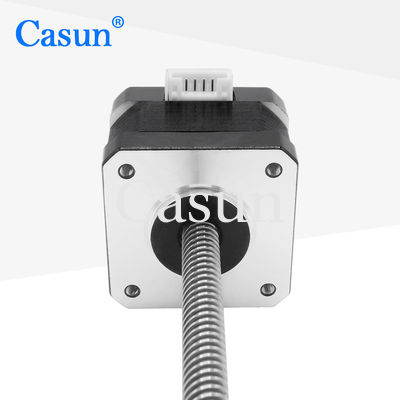

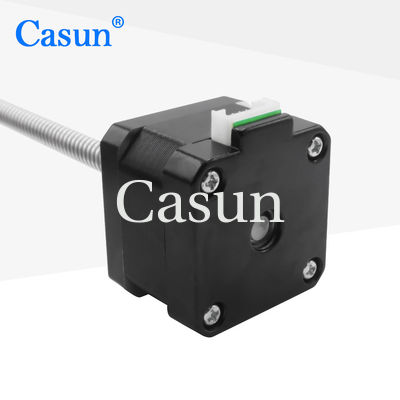

Tr8*8 280mN.M NEMA 17 Stepper Motor With Lead Screw 0.2kg Ball Screw Stepper Motor

Tr8*8 280mN.M NEMA 17 Stepper Motor With Lead Screw 0.2kg Ball Screw Stepper Motor

Brand Name:	Casun
Model Number:	42SHD0003-200NKH
MOQ:	1PC
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.4Amp

Holding Torque:

280mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Tr8*8 NEMA 17 Stepper Motor

280mN.M NEMA 17 Stepper Motor

0.2kg Ball Screw Stepper Motor

Product Description

Tr8×8 280mN.M NEMA 17 Stepper Motor With Lead Screw 0.2kg Ball Screw Stepper Motor

NEMA17 Ball stepper motor with lead screw holding torque 280mN.m 0.2kg tr8×8 for CNC applications. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	0.4Amp
Holding Torque	280 mN.m
Resistance	30ohm
Inductance	37mH
Rotor Inertia	38g-cm²
Motor Weight	0.2kg
Lead Screw	Tr8×8
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm	5	2	20-1000 mm
34 mm	8	1.27	3.175
40 mm	6.35	6.35	6.5
48 mm	3	8	1
60 mm	6.35	12	4

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
