Lead Screw Stepper Motor
Created with Pixso.

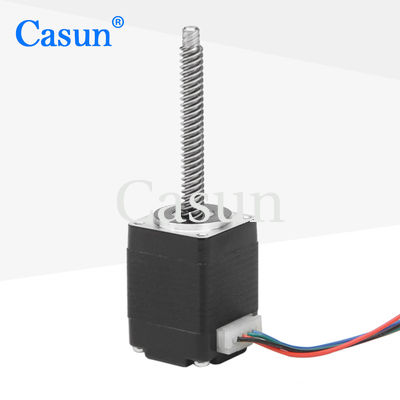

20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor

name

20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor

Brand Name: Casun
Model Number: 42SHD0034-81NP
MOQ: 1PC
Price: $9.68-$14
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
14mN.m
Current:
0.5A
Motor Length:
27.5mm
Shaft:
Screw Shaft 81mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

20X20X27mm NEMA 8

,

27mm NEMA 8 Stepper Motor

,

NEMA 8 Captive Stepper Motor

Product Description

The external screw drive structure of the 20mm external drive screw motor can stabilize motor movement, reduce the probability of motor vibration and resonance, and improve the stability of the control system.

Compact structure, suitable for occasions with limited space.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Provide "multiple international certifications" for high-tech industry and electronic industry equipment

  • Our engineers will be in touch within 48 hours to provide the best solution





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

14 mN.m

Resistance

5.5 ohm

Inductance

1.5 mH

Rotor Inertia

2 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

Dimensions

20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor 0

















Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Submodels





Body Length



 Diameter of Screw Pitch Length of Screw

27mm



30mm



38mm



42mm



47mm

 3.5 0.696 20 ~ 1000m
1.2192
2.44
4
4 2
4.76 5.08
5 2
4
8
5.08
5.56 4.8765





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

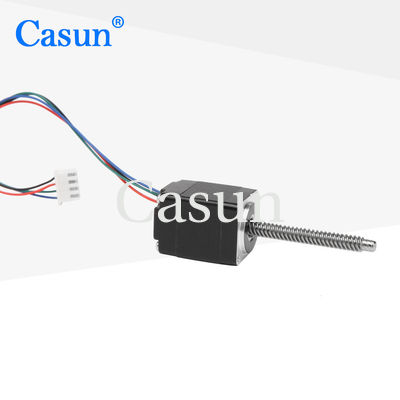

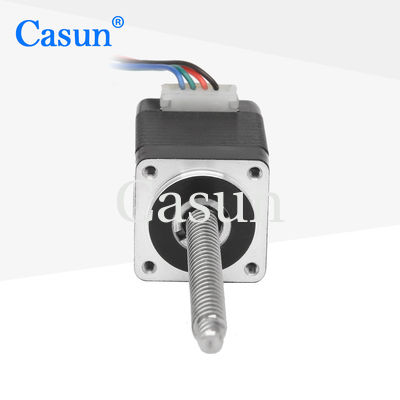

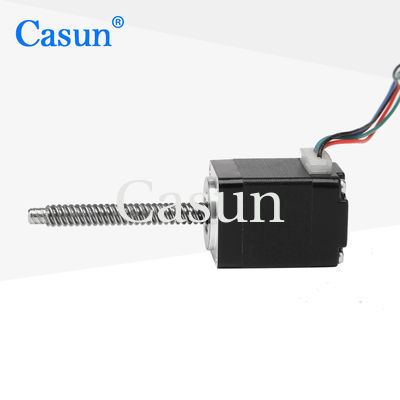

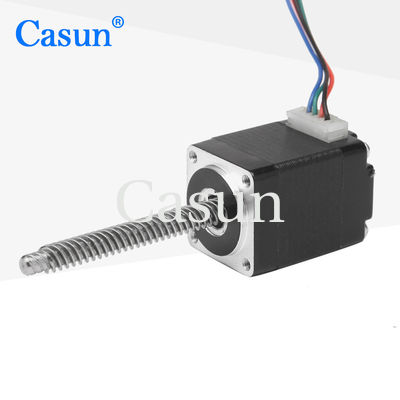

20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor 1 20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor 2 20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor 3 20X20X27mm NEMA 8 Stepper Motor With Lead Screw Captive Stepper Motor 4



Please click the "Get a quote" button below to tell us your requirements.
