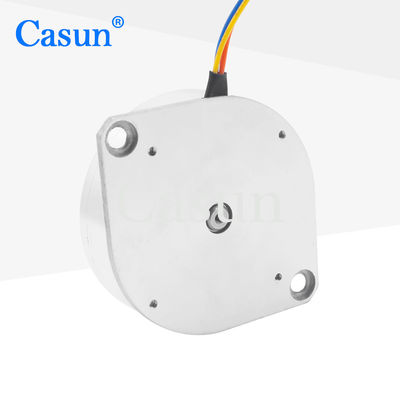

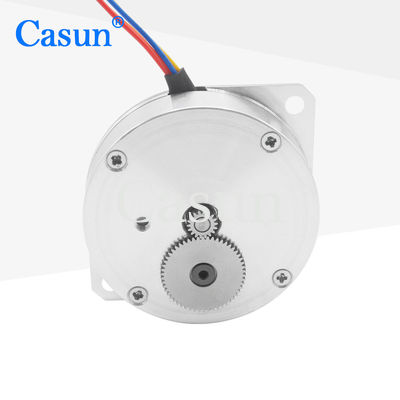

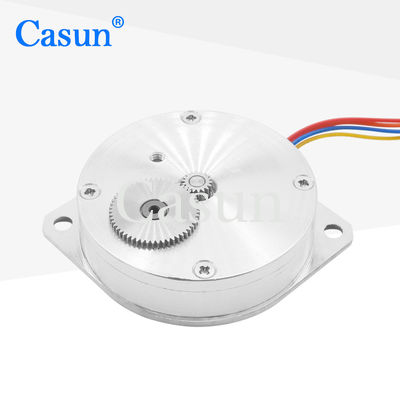

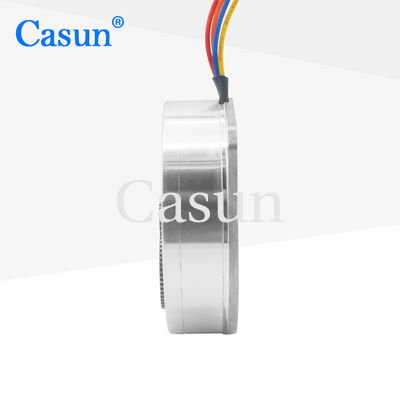

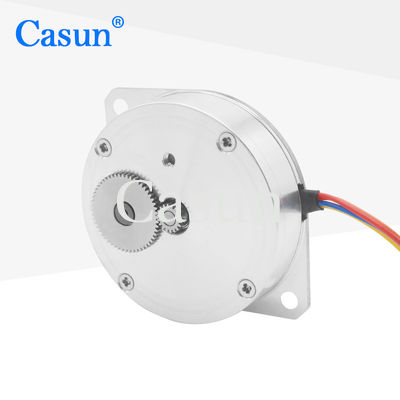

Casun 52mN.M Pancake Stepper Motor 1.8 Degree 2.5V Hybrid Stepping Motor CE

Casun 52mN.M Pancake Stepper Motor 1.8 Degree 2.5V Hybrid Stepping Motor CE

Brand Name:	Casun
Model Number:	46SHY4401-2A1
MOQ:	1PC
Price:	$13.8-15.38
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.5V

Rate Current:

Holding Torque:

52mN.m

Detent Torque:

8mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Supply Ability:

40000+PCS+Month

Highlight:

52mN.M Pancake Stepper Motor

Casun Pancake Stepper Motor

2.5V Hybrid Stepping Motor

Product Description

Casun 52mN.M Pancake Stepper Motor 1.8 Degree 2.5V Hybrid Stepping Motor CE

Casun 52mN.m Pancake Stepper Motor 1.8 degree 2.5V Hybrid Stepping Motor with CE approval. The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	46mm
Number of Phase	2 Phase
Rated Current	1.0Amp
Holding Torque	52 mN.m
Resistance	2.5 ohm
Inductance	1.7mH
Rotor Inertia	7 g-cm²
Motor Weight	0.1kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model No	Step Angle	Rated Voltage	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Detent Torque	Rotor Inertia	Motor Length	Motor Weight
46SHY4001-3A	1.8°	3.2V	1A	3.2ohm	2.7mH	100mN.m	8mN.m	11	46	0.1
46SHY4001-13S	1.8°	3.2V	1A	3.2ohm	2.7mH	100mN.m	8mN.m	11	46	0.1
46SHY4302-3A2-2	1.8°	1.64V	2A	0.82ohm	1mH	190mN.m	12mN.m	18	46	0.2
46SHY4003-4AL1-1	1.8°	2.8V	1A	2.8ohm	2.4mH	90mN.m	8mN.m	11	46	0.1
46SHY4001-3AL1-1	1.8°	3.2V	1A	3.2ohm	2.7mH	100mN.m	8mN.m	11	46	0.1
46SHY4401-2A1	1.8°	2.5V	1A	2.5ohm	1.7mH	52mN.m	8mN.m	7	46	0.1

Model	Motor Length	Current	Holding Torque
P28SHD4611	9.5mm	0.5A	16mN.m
P28SHD4701	10.6mm	0.5A	20mN.m
P28SHD4750	13-15mm	0.5A	25mN.m
P28SHD4950	17.9mm	0.5A	35mN.m

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options

Encoder

Brake

Gearbox

Shaft

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

3. What can you buy from us?

Stepper Motor, BLDC Motor

4. Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal;
Language Spoken: English, Chinese, Japanese
