Home > products > Pancake Stepper Motor > 100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper

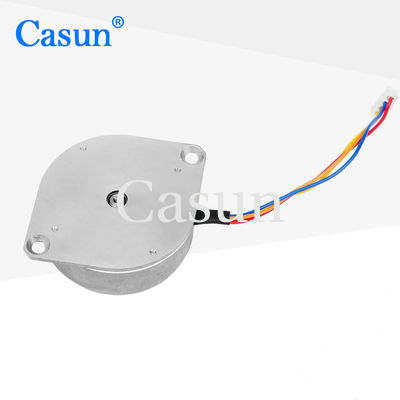

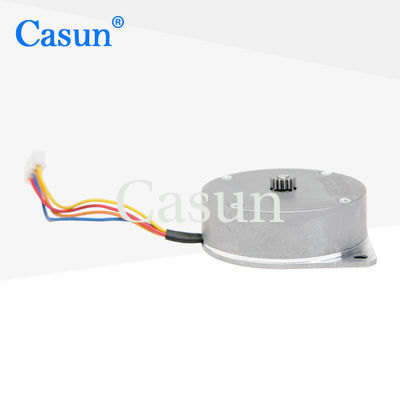

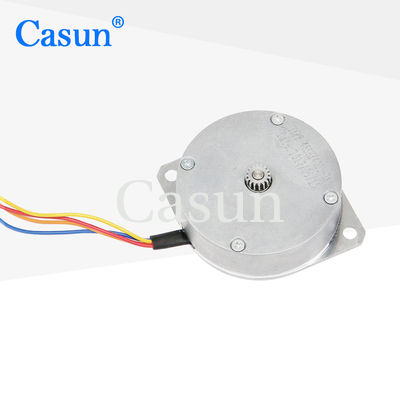

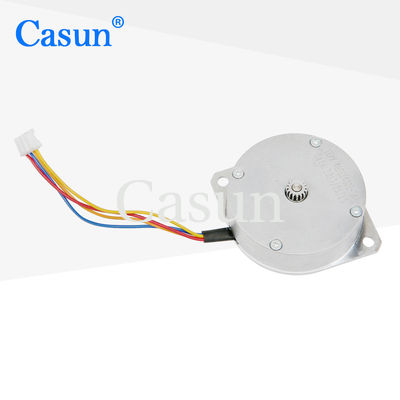

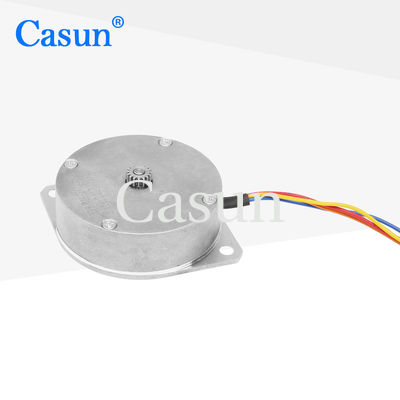

100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 46SHY4001-3A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13.8-$15.38

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

100mN.M Pancake Stepper Motor

,

3.2V Pancake Stepper Motor

,

Casun Flat Stepper

Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
3.2V
Rate Current:
1A
Holding Torque:
100mN.m
Detent Torque:
8mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
3.2V
Rate Current:
1A
Holding Torque:
100mN.m
Detent Torque:
8mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

High Troque Casun Pancake Stepper Motor 3.2V 1.8 Degree 100mN.m Flat Stepping Motor

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper 0







Motor Specifications



Step Angel



1.8 °

Fram Size



46mm

Number of Phase



2 Phase

Rated Current



1.0Amp

Holding Torque



100mN.m

Resistance



3.2 ohm

Inductance



2.7mH

Rotor Inertia



11g-cm²

Motor weight



0.1kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Motor Weight(Kg)
46SHY4001-3A 1.8° 3.2V 1A 3.2ohm 2.7mH 100mN.m 8mN.m 11 46 0.1
46SHY4001-13S 1.8° 3.2V 1A 3.2ohm 2.7mH 100mN.m 8mN.m 11 46 0.1
46SHY4302-3A2-2 1.8° 1.64V 2A 0.82ohm 1mH 190mN.m 12mN.m 18 46 0.2
46SHY4003-4AL1-1 1.8° 2.8V 1A 2.8ohm 2.4mH 90mN.m 8mN.m 11 46 0.1
46SHY4001-3AL1-1 1.8° 3.2V 1A 3.2ohm 2.7mH 100mN.m 8mN.m 11 46 0.1
46SHY4401-2A1 1.8° 2.5V 1A 2.5ohm 1.7mH 52mN.m 8mN.m 7 46 0.1



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
