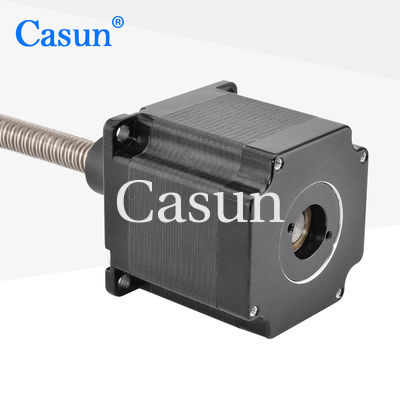

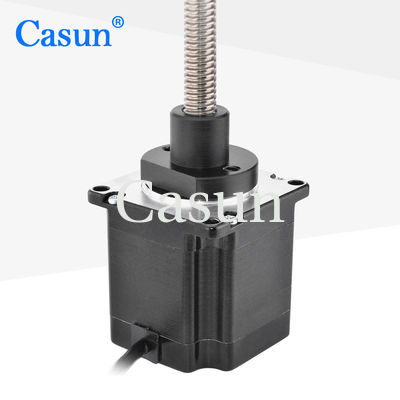

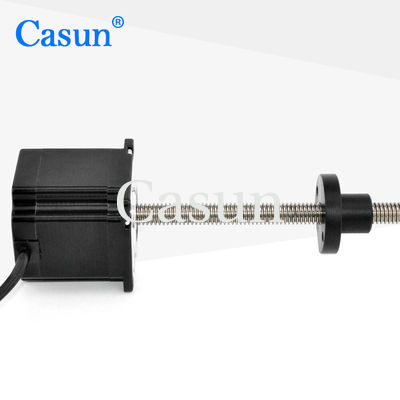

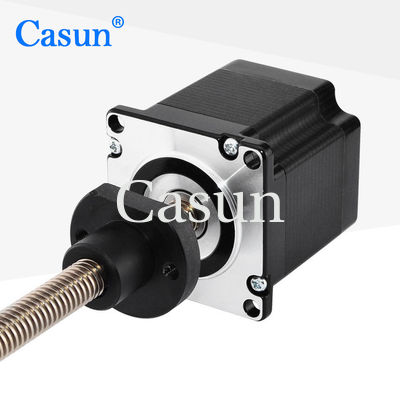

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

57mm NEMA 23 Stepper Motor With Lead Screw Captive Stepper Motor 2.8A 1N.M

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD0408-160NT

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.68-$14

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                57mm NEMA 23 Stepper Motor, 57mm Captive Stepper Motor, 2.8A 1N.M 57mm NEMA 23


Step Angel:	1.8°	Holding Torque:	1000mN.m
Current:	2.8A	Motor Length:	54mm
Shaft:	Screw Shaft 81mm Length	Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Step Angel:	1.8°
Holding Torque:	1000mN.m
Current:	2.8A
Motor Length:	54mm
Shaft:	Screw Shaft 81mm Length
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

The screw drive structure of the 57 screw stepper motor can stabilize motor motion, reduce the probability of motor vibration and resonance, and improve the stability of the control system.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Versions in unipolar or bipolar are offered
Hybrid stepper building
Available in variations with a single or double shaft
CE and RoHS compliance
Within 48 hours, one of our engineers will contact you with the best option

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1000 mN.m
Resistance	1.2 ohm
Inductance	4.2 mH
Rotor Inertia	260 g-cm²
Motor weight	0.8 kg
Number of leads	4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm 54mm 76mm 83mm 100mm	8	1	20 ~ 1000m
		2
		4
		8
	9.53	1.5875
		3.175
		25.4
	10	2
		4
		10
		20
	12	4
	15	4
	15	8

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
