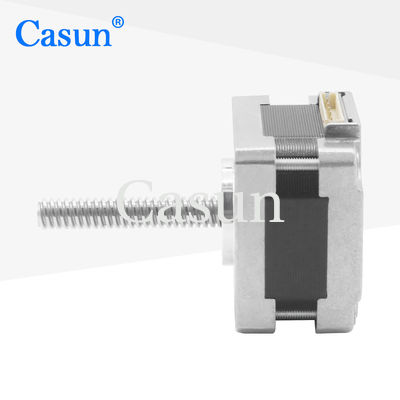

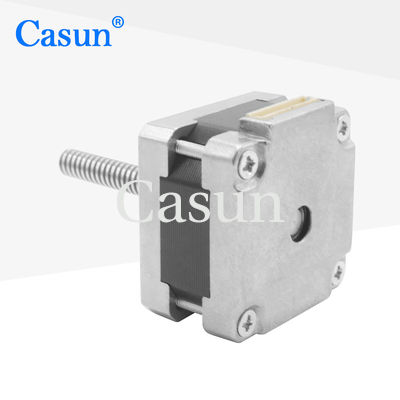

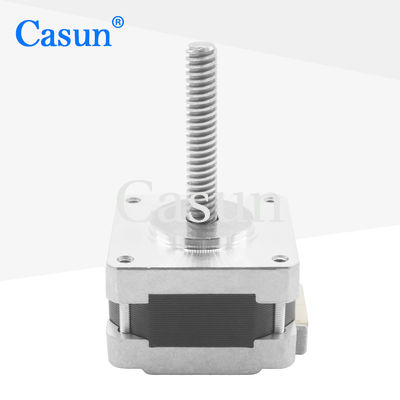

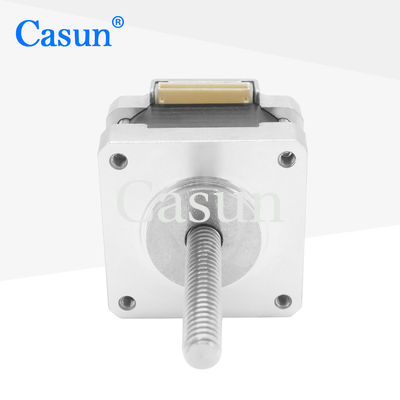

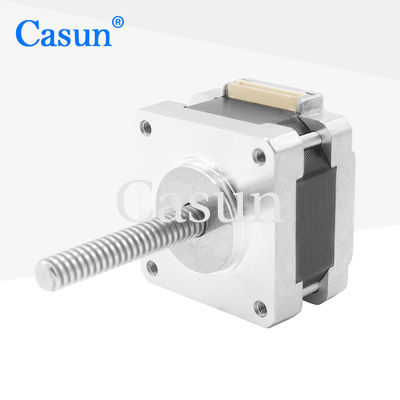

25mm 12V NEMA 16 Stepper Motor With Lead Screw Captive Stepper Motor 4 Phase

25mm 12V NEMA 16 Stepper Motor With Lead Screw Captive Stepper Motor 4 Phase

Brand Name:	Casun
Model Number:	39SHD0609-40N
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

120mN.m

Current:

0.28A

Motor Length:

25mm

Shaft:

Screw Shaft 40mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

25mm Captive Stepper Motor

12V NEMA 16 Stepper Motor

Captive Stepper Motor 4 Phase

Product Description

25mm 12V NEMA 16 Stepper Motor With Lead Screw Captive Stepper Motor 4 Phase

The 39 external drive screw stepper motor offers high precision, long service life, low energy consumption, large torque, excellent reverse characteristics, and convenient installation. Widely used in automation equipment, medical devices, printing machinery, textile machinery, and other industrial applications.

Key Features

Available in unipolar or bipolar versions
Hybrid stepper construction
Expert in professional drivetrain solutions
12-year history in China with over 800 clients served
Engineering consultation within 48 hours

Motor Specifications

Step Angle	1.8°
Frame Size	39 mm
Number of Phase	4 Phase
Rated Current	0.28 A
Holding Torque	120 mN.m
Resistance	44 ohm
Inductance	20 mH
Rotor Inertia	15 g-cm²
Motor Weight	0.17 kg
Number of Leads	6
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Submodels

Body Length	20mm, 22mm, 23mm, 25mm, 29mm, 30mm, 34mm, 38mm, 48mm
Diameter of Screw	5mm, 6mm, 6.5mm, 8mm, M5
Pitch	1mm, 3mm, 0.8mm, 1.6mm
Length of Screw	20mm to 1000mm

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.
