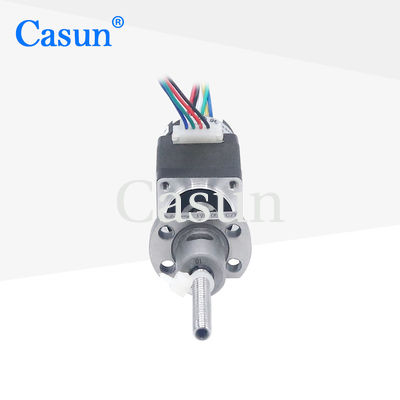

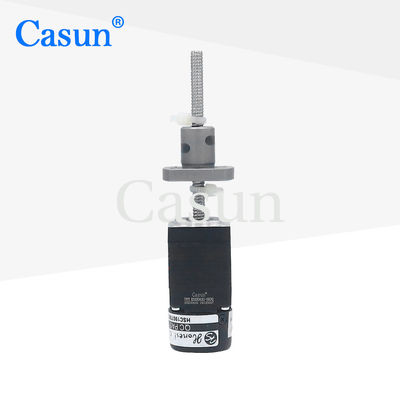

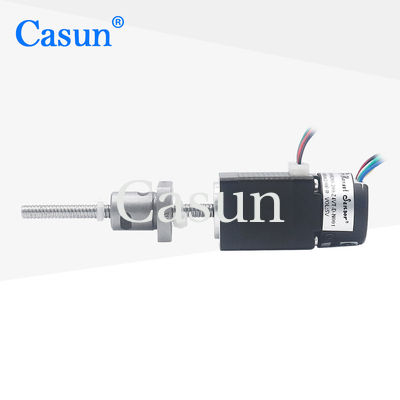

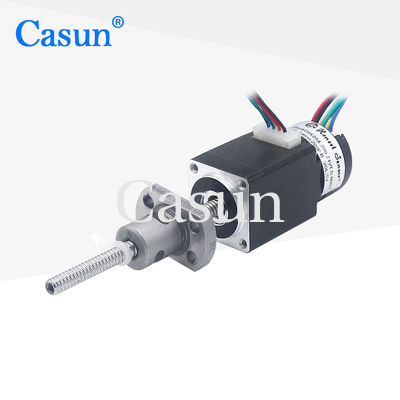

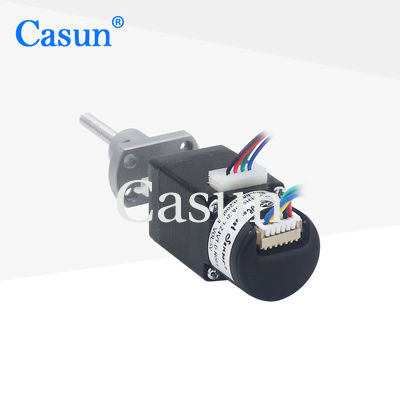

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

name

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

Brand Name: Casun
Model Number: B20SHD4351-56GPQ
MOQ: 1PC
Price: $20-$28
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
0.5
Motor Length:
27.5mm
Shaft:
Ball Screw 55.5mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

27.5mm NEMA 8 Close Loop Motor

,

20×20×27.5mm NEMA 8

,

NEMA 8 Stepper Motor With Encoder

Product Description

Features:

  • Accept contract manufacturing

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • High torque and high precision

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

14 mN.m

Resistance

5.5 ohm

Inductance

1.5 mH

Rotor Inertia

2 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

Appearance

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 0

Dimensions

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves







Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 2 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 3 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 4 20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 5



Please click the "Get a quote" button below to tell us your requirements.
