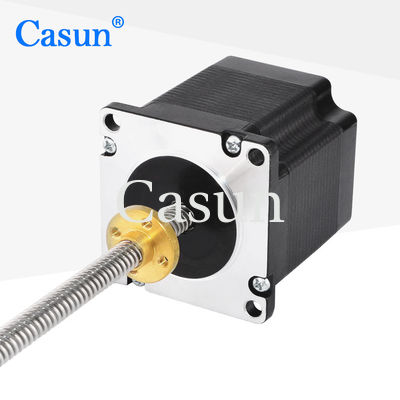

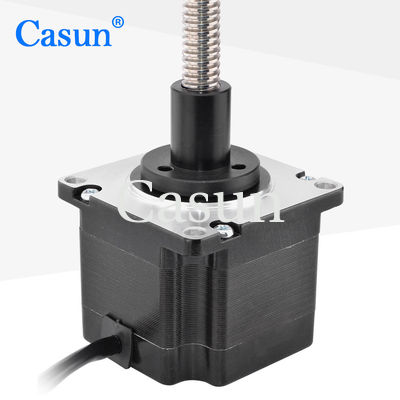

57x57x54mm 3.36V NEMA 23 Stepper Motor With Lead Screw For Engraving Machine

57x57x54mm 3.36V NEMA 23 Stepper Motor With Lead Screw For Engraving Machine

Brand Name:	Casun
Model Number:	57SHD0408-160NT
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

1000mN.m

Rated Voltage:

3.36V

Current:

2.8A

Motor Length:

54mm

Shaft:

Screw Shaft 81mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

3.36V NEMA 23 Stepper Motor

57x57x54mm NEMA 23 lead screw

3.36V NEMA 23 lead screw

Product Description

57x57x54mm 3.36V NEMA 23 Stepper Motor With Lead Screw

This 57mm hybrid stepper motor series delivers powerful holding torque in a compact size. Designed specifically for engraving machines, this NEMA 23 captive stepper motor features 3.36V operation, 2.8A rated current, and 1.0N.m holding torque with CE certification.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction for smooth operation
Available in single or double shaft versions
CE and RoHS approved for quality assurance
Compatible with microstepping drivers for reduced vibration

Motor Dimensions

Technical Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1000 mN.m
Resistance	1.2 ohm
Inductance	4.2 mH
Rotor Inertia	260 g-cm²
Motor Weight	0.8 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Max Temperature: 80°C

Ambient Temp: -20°C to 50°C

Storage Temp: -20°C to 100°C

Humidity Range: 85% or less

Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm, 54mm, 76mm, 83mm, 100mm	8mm	1mm	20-1000mm
	2mm, 4mm, 8mm, 9.53mm	1.5875mm, 3.175mm, 25.4mm, 10mm	2mm, 4mm, 10mm, 20mm
	12mm	4mm, 15mm	4mm, 8mm

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Available

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Our customization services include but are not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. We serve domestic and international markets including Western Europe, North America, and Eastern Asia with a team of 51-100 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality.

What products do we offer?

We specialize in Stepper Motors and BLDC Motors.

Why choose us?

We have over 11 years of specialized experience in producing and selling stepper motors.

What services do we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW, Express Delivery) and payment methods (T/T, L/C, D/P D/A, PayPal) in multiple currencies. Our team speaks English, Chinese, and Japanese.

Ready to Order?

Our engineers will contact you within 48 hours to provide the best solution for your application requirements.

Please click the "Get a quote" button below to tell us your specific requirements.
