60mN.M 0.67Amp 3.75v NEMA 11 Stepper Motor With Lead Screw Linear Stepper Motor

60mN.M 0.67Amp 3.75v NEMA 11 Stepper Motor With Lead Screw Linear Stepper Motor

Brand Name:	Casun
Model Number:	28SHD4202-36NM
MOQ:	1PC
Price:	$10.94 - $14.94
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.67Amp

Holding Torque:

60mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

3.75v NEMA 11 Stepper Motor

0.67Amp 3.75v NEMA 11

60mN.M Linear Stepper Motor

Product Description

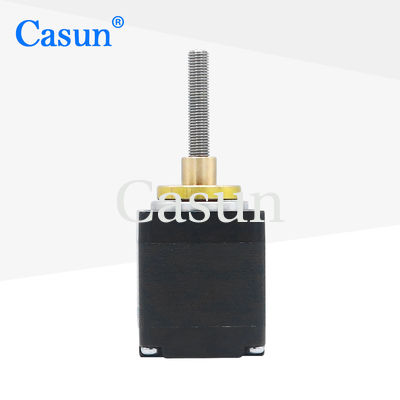

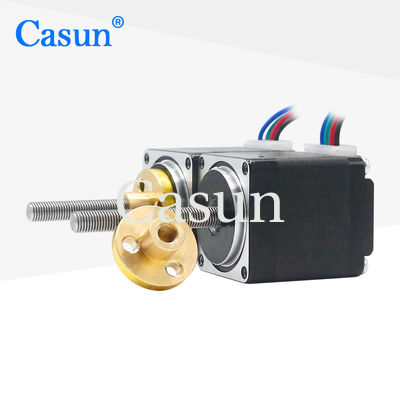

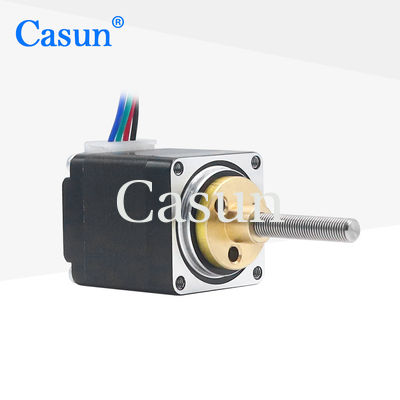

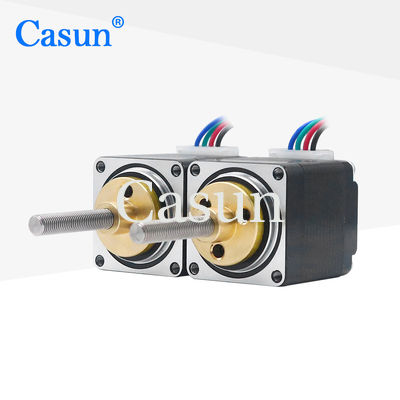

NEMA 11 Stepper Motor with Lead Screw

High-performance 60mN.m 0.67Amp 3.75V NEMA 11 stepper motor with TR4.76X0.635 lead screw, designed for precision linear motion applications.

Product Overview

Our NEMA 11 lead screw stepper motor series delivers reliable performance for CNC and automation applications. The 42mm Hybrid Stepper Motor Series provides powerful holding torque in compact sizes. When paired with a microstepping driver, these motors reduce vibration and achieve superior step resolution.

Key Features

Bipolar or unipolar configurations available
Advanced hybrid stepper construction
Single or double shaft versions
CE and RoHS certified
Customization options available

Technical Specifications

Motor Specifications

Step Angle	1.8°
Frame Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	60 mN.m
Resistance	5.6 ohm
Inductance	3.4 mH
Rotor Inertia	9 g·cm²
Motor Weight	0.12 kg
Lead Screw	TR4.76X0.635
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Product Models

Model	Holding Torque	Step Angle	Motor Length	Shaft Type	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motors don't meet your requirements, we can customize motors to your exact specifications. Customization options include special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and more.

Available Options
