products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

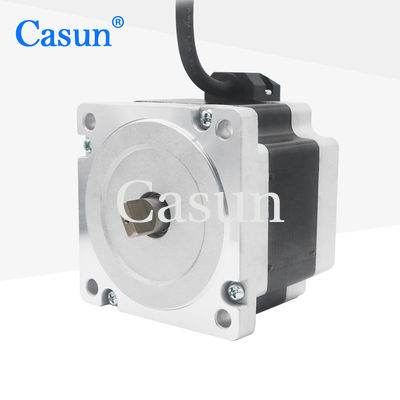

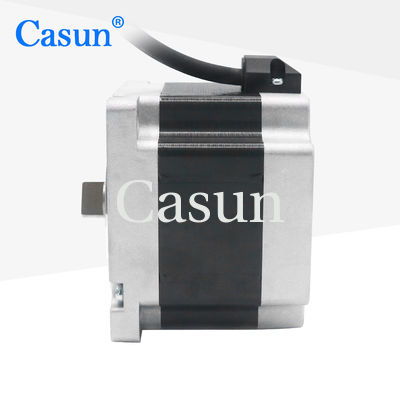

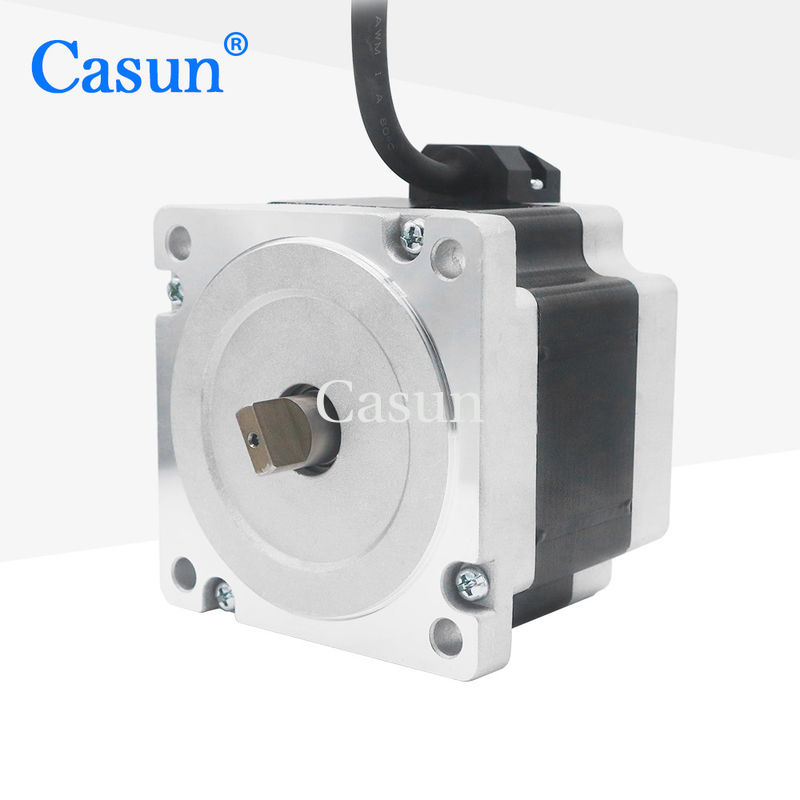

86x86mm 4A 4N.M 1.9kg NEMA 34 Stepper Motor For CNC Engraving Machine

name

86x86mm 4A 4N.M 1.9kg NEMA 34 Stepper Motor For CNC Engraving Machine

Brand Name: Casun
Model Number: 86SHD4003-14B
MOQ: 1PC
Price: $24.92-$25.96
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
4N.m
Current:
4A
Motor Length:
69mm
Shaft:
Round Shaft 14mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.9kg NEMA 34 Stepper Motor

,

4A 4NM NEMA 34 Stepper Motor

,

86x86mm NEMA 34

Product Description

Nema34 Stepper Motor 86x86mm 69mm 4A 4N.m 1.9kg Motor High Precision Motor for CNC Engraving Machine

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



86mm

Number of Phase



2 Phase

Rated Current



4A

Holding Torque



4N.m

Resistance



2.1ohm

Inductance



7.2mH

Rotor Inertia



1000g-cm²

Motor weight



1.9 kg

Number of leads



4

Connection



Bipolar





Appearance

86x86mm 4A 4N.M 1.9kg NEMA 34 Stepper Motor For CNC Engraving Machine 0

Dimensions

86x86mm 4A 4N.M 1.9kg NEMA 34 Stepper Motor For CNC Engraving Machine 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
