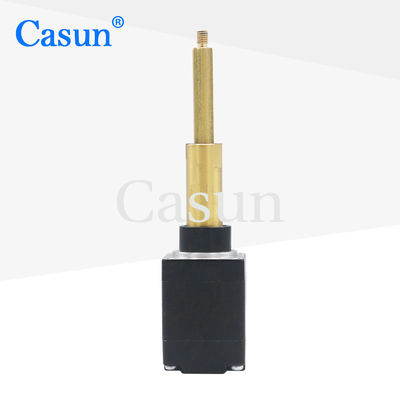

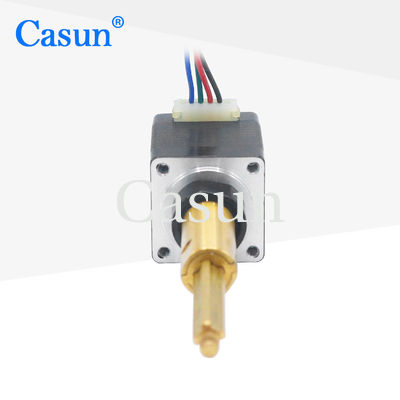

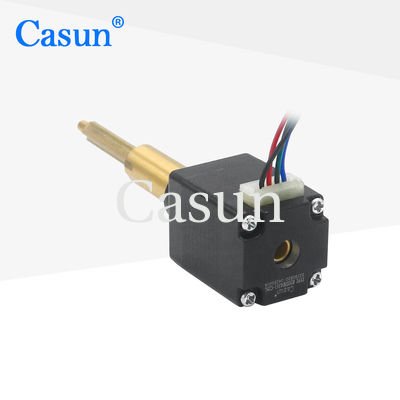

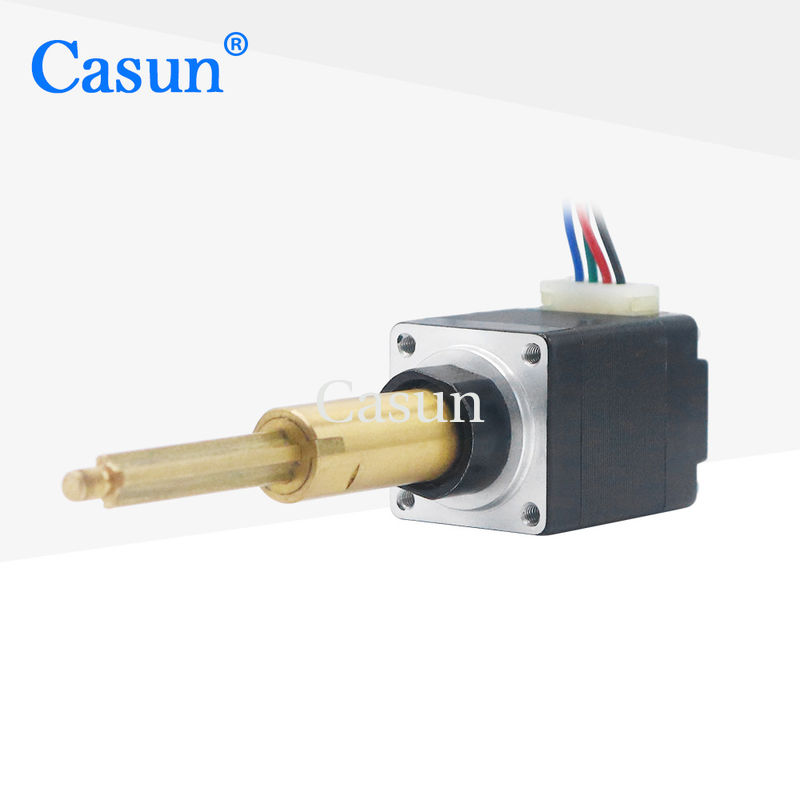

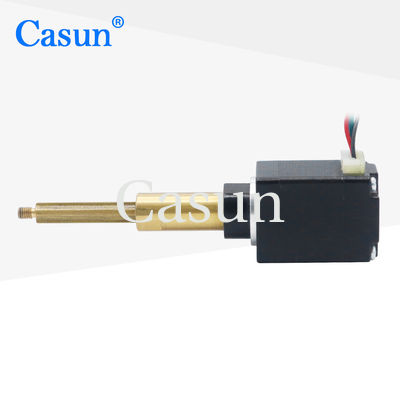

High quality Casun 0.24A Captive Stepper Motor NEMA 8 Linear Actuator Motor 0.5KG stepping motor for medical device

High quality Casun 0.24A Captive Stepper Motor NEMA 8 Linear Actuator Motor 0.5KG stepping motor for medical device

Brand Name:	Casun
Model Number:	B20SHD4351-C25L
MOQ:	1PC
Price:	$25-$29
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.55V

Rate Current:

0.5A

Minimal Thrust:

0.5kg At 600pps

Weight:

0.1KG

Insulation:

Class B

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

5.28V Captive Stepper Motor

0.24A Captive Stepper Motor

NEMA 8 Linear Actuator Motor

Product Description

High Quality Casun 0.24A Captive Stepper Motor NEMA 8 Linear Actuator

Micro Stepper Motor NEMA 8 2.55V 0.5A Linear Actuator available in a variety of resolutions. The 20mm Hybrid Stepper Motor Series offers powerful holding torque in various sizes. Use a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available

Hybrid stepper construction

Available in single- or double-shaft versions

CE and RoHS-approved

Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Minimum Thrust	0.1 kg
Resistance	5.1 Ω
Inductance	1.5 mH
Rotor Inertia	2 g·cm²
Motor Weight	0.1 kg
Lead Screw	NON
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 mm Max. (450g-load)
Shaft Axial Play	0.08 mm Max. (450g-load)
Maximum Radial Force	28N (20mm from the flange)
Maximum Axial Force	10N

Torque Curves

Available Models

Model	Holding Torque	Step Angle	Length	Shaft Type	Rated Current
35SHD0307-20	80 mN·m	1.8°	20 mm	Round Shaft	0.4 A
35SHD0001-20	100 mN·m	1.8°	26 mm	Round Shaft	0.4 A
35SHD0102-20B	150 mN·m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801-20B	280 mN·m	1.8°	40 mm	D Shaft-20mm	0.5 A

Motor Dimensions

Motor Length	Stroke	Dimension A	Dimension B
27.5 mm	25.4 mm	27.5 mm	17.2 mm Max
31.8 mm	33.9 mm	22 mm Max	-
38.1 mm	40.2 mm	28 mm Max	-

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, and more.

Get a Quote

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese
